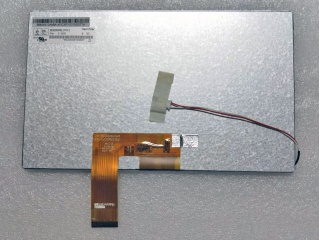

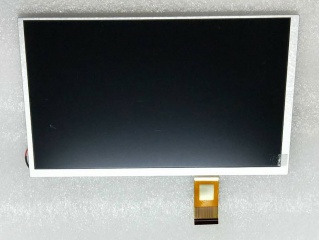

| Nombor Bahagian | HSD090LFW1-B00 |
| Jenama | HannStar |
| Saiz | 9.0 |
| Permohonan | Automotive Display |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | HannStar |
| model | HSD090LFW1-B00 |
| saiz pepenjuru | 9.0 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 1024(RGB)×600 [WSVGA] 132PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 196.608(H)×114.15(V) mm |
| garis besar malap. | 211.1(H)×126.5(V) ×6(D) mm |
| kawasan bezel | 200.01(H)×117.55(V) mm |
| rawatan | Glare (Haze 0%) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 17/18 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | IPS Pro, Normally Black, Transmissive |
| warna sokongan | 262K/16.2M 50% NTSC |
| sumber cahaya | WLED , 150K hours , W/O Driver |
| berat badan | 230g (Typ.) |
| direka untuk | Automotive Display |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| bekalan kuasa | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
