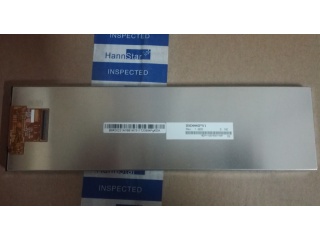

| Nombor Bahagian | HSD088IPW1-B00 |
| Jenama | HannStar |
| Saiz | 8.8 |
| Permohonan | Automotive Display |
| Resolusi | 1920×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| pengilang | HannStar |
| nama model | HSD088IPW1-B00 |
| saiz skrin | 8.8 inch |
| jenis skrin | LCM , a-Si TFT-LCD |
| nombor piksel | 1920×480(RGB) 222PPI |
| susunan | RGB Horizontal Stripe |
| kawasan aktif (mm) | 218.88 × 54.72 (H×V) |
| garis besar (mm) | - |
| kecerahan | - |
| nisbah kontras | 800 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 16.7M 50% NTSC |
| lampu latar | WLED , 30K hours , No Driver |
| jisim | - |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | MIPI (4 data lanes) , 40 pins Connector |
| bekalan voltan | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
