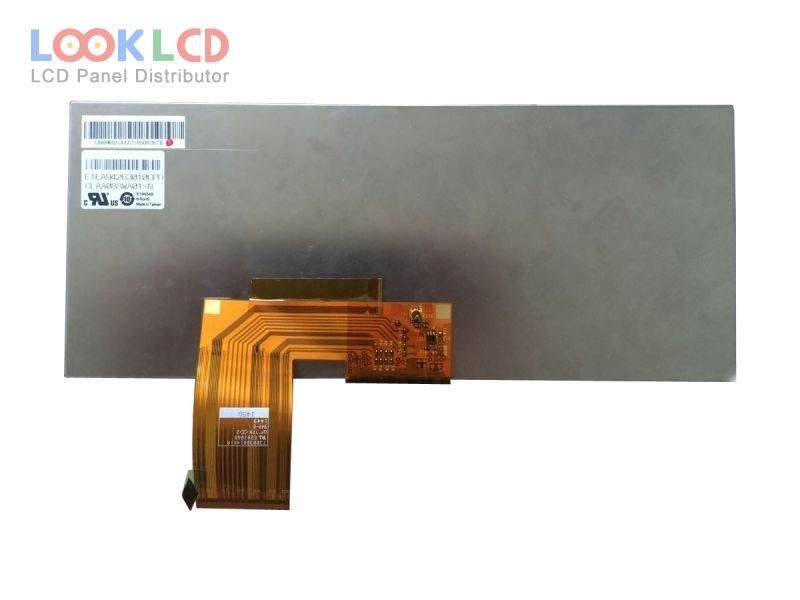

| Nombor Bahagian | CLAA088WA01XN |
| Jenama | CPT |
| Saiz | 8.8 |
| Permohonan | CNS |
| Resolusi | 1280×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CPT |
| model panel | CLAA088WA01XN |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.8 inch |
| resolusi | 1280(RGB)×480 , DVGA |
| mod paparan | HFFS, Normally Black, Transmissive |
| kawasan aktif | 209.28×78.48 mm |
| garis besar | 229.6×97.3×6.3 mm |
| permukaan | Antiglare (Haze 25%) |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193170% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S14PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 60 pins |
| voltan masukan | 3.3/13.0/20/-6.0V (Typ.)(DVDD/AVDD/IGH/IGL) |
| permohonan | CNS |
