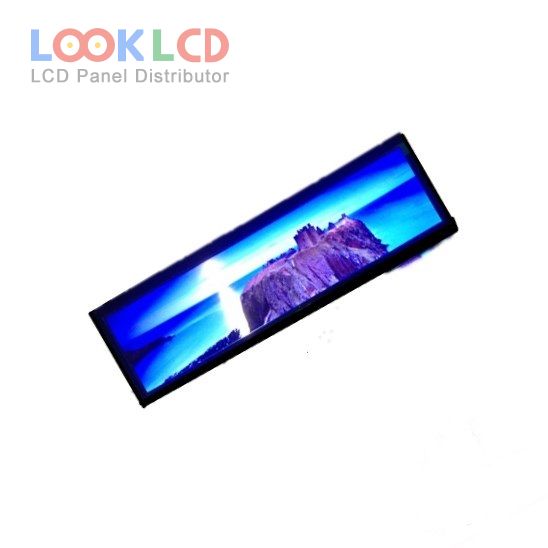

| Nombor Bahagian | S088WX03 |
| Jenama | CDTECH |
| Saiz | 8.8 |
| Permohonan | IA |
| Resolusi | 1280×320 |
| Komposisi | LCM |
| Kecerahan | 600 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CDTECH |
| model panel | S088WX03 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.8 inch(2/5 cut of 10.1") |
| resolusi | 1280(RGB)×320 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 216.96×54.24 mm |
| garis besar | 229.66×67.5×6.2 mm |
| permukaan | |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193162% |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4S9PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| permohonan | IA |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| LQ088H9DR01U | SHARP | 8.8 | 640×240 |
| LQ088H9DZ03 | SHARP | 8.8 | 640×240 |
| LQ088Y3DG01 | SHARP | 8.8 | 800×480 |
| S088WX03 | CDTECH | 8.8 | 1280×320 |
| T-51965GD088ZU-MFW-AEN | Kyocera | 8.8 | 640×240 |
| DLF1095 | LiteMax | 10.4 | 1024×768 |
| EDMGRB8KHF | Panasonic | 7.8 | 640×480 |
| EG4401S-ER | Epson | 5.3 | 256×128 |
| KCB6448BSTT-X11 | Kyocera | 10.4 | 640×480 |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ9D168K | SHARP | 8.4 | 640×480 |
| P50AN3 | E Ink | 5.0 | 320×234 |
| PM070WX9 | E Ink | 7.0 | 800×480 |
| RGS08096032WR001 | RiTdisplay | 0.80 | 96×32 |
| TX26D01VM1CAA | KOE | 10.4 | 640×480 |
