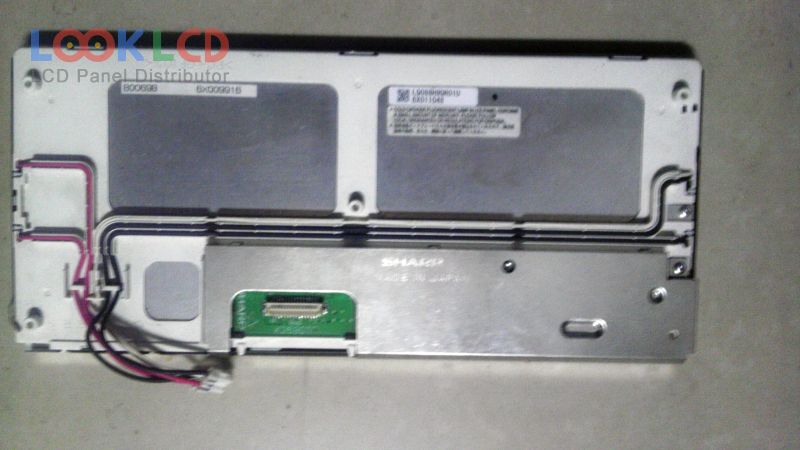

| Nombor Bahagian | LQ088H9DR01U |
| Jenama | SHARP |
| Saiz | 8.8 |
| Permohonan | CNS |
| Resolusi | 640×240 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ088H9DR01U |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.8 inch |
| resolusi | 640(RGB)×240 , HVGA |
| mod paparan | TN, Normally White, Transflective |
| kawasan aktif | 209.28×78.48 mm |
| garis besar | 231.6×103.6 mm |
| permukaan | |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | 2 pcsCCFL |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 31 pins |
| rohs: | |
| permohonan | CNS |
