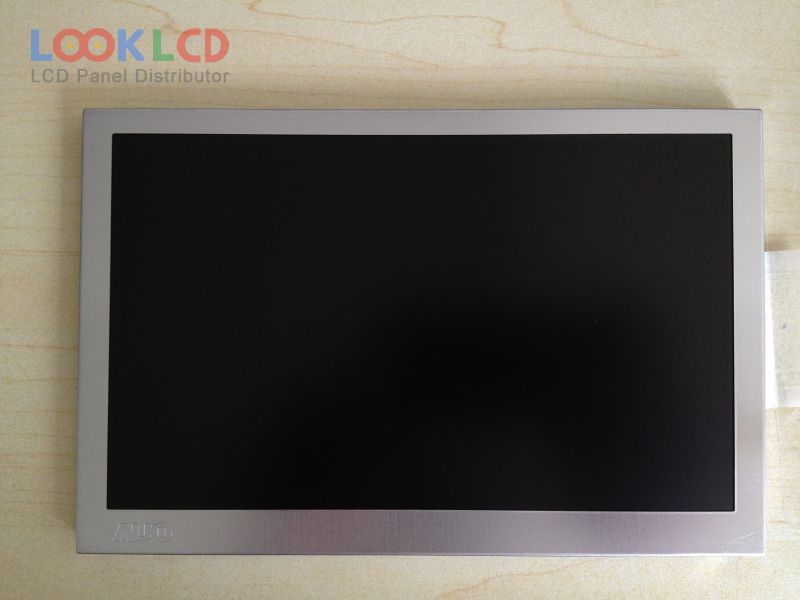

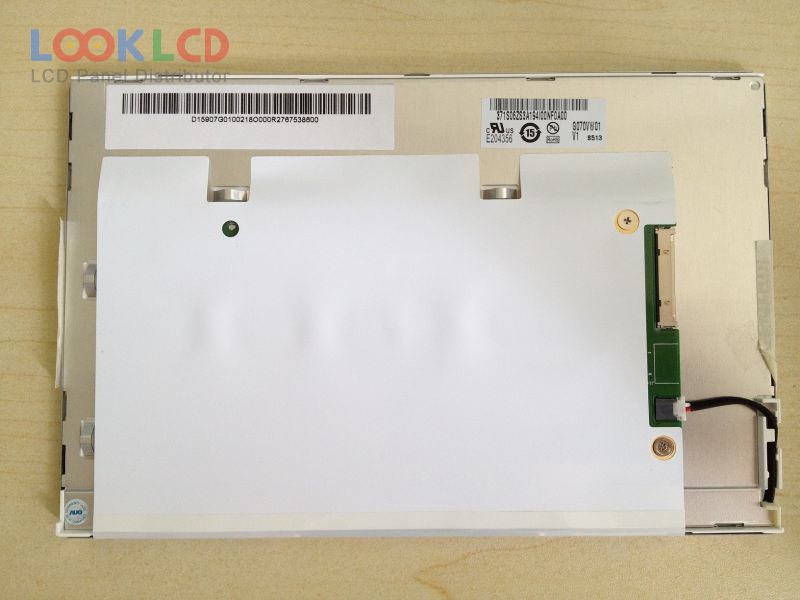

G070VW01 V1


Jenama
AUO
Saiz
7.0
Permohonan
IA
Resolusi
800×480
Komposisi
LCM
Kecerahan
350
CR
500:1
Warna
262K/16.2M
Lampu latar
WLED
Antara muka
LVDS
In Stock
4506
Spesifikasi

Nombor Bahagian G070VW01 V1
JenamaAUO
Saiz7.0
PermohonanIA
Resolusi800×480
KomposisiLCM
Kecerahan350
CR500:1
Warna262K/16.2M
Lampu latarWLED
Antara mukaLVDS
jenama panelAUO
model panelG070VW01 V1
jenis panel a-Si TFT-LCD , LCM
saiz panel7.0 inch
resolusi800(RGB)×480 , WVGA
mod paparanTN, Normally White, Transmissive
kawasan aktif152.4×91.44 mm
garis besar170×111×8.5 mm
permukaanAntiglare, Hard coating (3H)
kecerahan350 cd/m² (Typ.)
nisbah kontras500:1 (Typ.)
warna paparan262K/16.2M (6-bit / 6-bit + FRC), CIE193150%
masa tindak balas12/18 (Typ.)(Tr/Td)
sudut pandangan65/65/50/60 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (1 ch, 6/8-bit), 20 pins
voltan masukan3.3V (Typ.)
permohonanIA
Model Keluarga
CLAP070WP03XG CPT 7.0 800×1280
G070VTN01.0 AUO 7.0 800×480
G070VTT01.0 AUO 7.0 800×480
G070VVN01.0 AUO 7.0 800×480
G070VVN01.1 AUO 7.0 800×480
G070VW01 V0 AUO 7.0 800×480
G070VW01 V1 AUO 7.0 800×480
LB070WV3-SD02 LG Display 7.0 800×480
TM070WA-22L06 SANYO 7.0 480×234
TX18D37VM0AQA KOE 7.0 800×480
