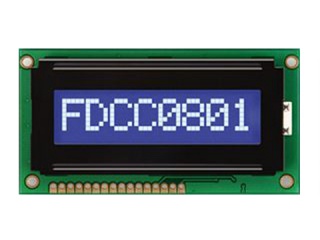

| Nombor Bahagian | FDCC0801A-NSWBBW-91LE |
| Jenama | Fordata |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | LCM, STN-LCD |
| Kecerahan | |
| CR | 6:1 |
| Warna | Monochrome |
| Lampu latar | WLED |
| Antara muka | 8-bit |
| pengilang | Fordata |
| nama model | FDCC0801A-NSWBBW-91LE |
| saiz skrin | 2.3 inch |
| jenis skrin | LCM, STN-LCD |
| nombor char | 8 characters × 1 lines 3PPI |
| format char | 5×8 dots |
| char pitch(mm) | 7.15×10.75 (H×V) |
| saiz aksara (mm) | 6.45×10.75 (H×V) |
| kawasan aktif (mm) | 56.5 × 10.75 (H×V) |
| garis besar (mm) | 84 × 44 × 13.5 (H×V×D) |
| kawasan bezel (mm) | 61.0 × 15.8 (H×V) |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 6 : 1 (Typ.) (TM) |
| sudut pandangan | - |
| tindak balas | 150/150 (Typ.)(Tr/Tf) ms |
| pandangan yang baik di | 6 o'clock |
| mod kerja | STN, Blue mode (Negative), Transmissive |
| kedalaman warna | Monochrome |
| lampu latar | WLED , 9K hours , No Driver |
| jisim | - |
| digunakan untuk | Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| jenis isyarat | 8-bit parallel , Pad 16 pins |
| bekalan voltan | 3.0V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
