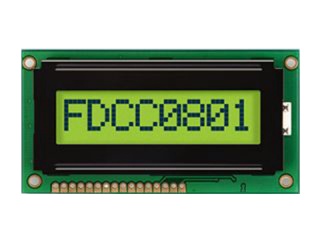

| Nombor Bahagian | FDCC0801A-FLYYBW-51LR |
| Jenama | Fordata |
| Saiz | 2.3 |
| Permohonan | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | LCM , STN-LCD |
| Kecerahan | |
| CR | 6:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | |
| pengilang | Fordata |
| saiz skrin | 2.3 inch |
| nombor char | 8 characters × 1 lines 3PPI |
| char pitch(mm) | 7.15×10.75 (H×V) |
| kawasan aktif (mm) | 56.5 × 10.75 (H×V) |
| kawasan bezel (mm) | 61.0 × 15.8 (H×V) |
| kecerahan | - |
| sudut pandangan | - |
| pandangan yang baik di | 6 o'clock |
| kedalaman warna | Monochrome |
| jisim | - |
| kadar segar semula | - |
| nama model | FDCC0801A-FLYYBW-51LR |
| jenis skrin | LCM , STN-LCD |
| format char | 5×8 dots |
| saiz aksara (mm) | 6.45×10.75 (H×V) |
| garis besar (mm) | 84 × 44 × 13.5 (H×V×D) |
| rawatan | - |
| nisbah kontras | 6 : 1 (Typ.) (TM) |
| mod kerja | STN, Yellow/Green (Positive), Transflective |
| tindak balas | 150/150 (Typ.)(Tr/Tf) ms |
| lampu latar | YG-LED , 9K hours , No Driver |
| digunakan untuk | Instruments & Meters |
| skrin sentuh | Without |
