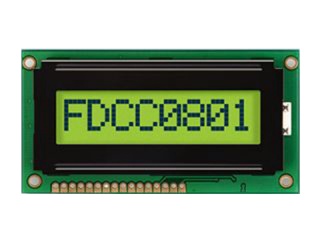

| Nombor Bahagian | FDCC0801A-FLYYBW-51LK |
| Jenama | Fordata |
| Saiz | 2.3 |
| Permohonan | Instruments & Meters |
| Resolusi | 8×13 |
| Komposisi | STN-LCD , LCM |
| Kecerahan | |
| CR | 6:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | 8-bit |
| jenama panel | Fordata |
| saiz panel | 2.3" |
| format paparan | 8 characters × 1 lines, 3PPI |
| saiz watak | 6.45×10.75(W×H) mm |
| kawasan paparan | 56.5(W)×10.75(H) mm |
| saiz garis besar | 84(W)×44(H) ×13.5(D) mm |
| kecerahan | - |
| sudut pandangan | - |
| pandangan terbaik pada | 6 o'clock |
| warna paparan | Monochrome |
| kekerapan | - |
| berat panel | - |
| antara muka isyarat | 8-bit parallel , 16 pins Pad |
| voltan masukan | 5.0V (Typ.) |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| model panel | FDCC0801A-FLYYBW-51LK |
| jenis panel | STN-LCD , LCM |
| format fon | 5×8 dots |
| nada watak | 7.15×10.75(W×H) mm |
| pembukaan bezel | 61.0(W)×15.8(H) mm |
| permukaan | - |
| nisbah kontras | 6:1 (Typ.) (TM) |
| mod paparan | STN, Yellow/Green (Positive), Transflective |
| masa tindak balas | 150/150 (Typ.)(Tr/Tf) |
| jenis lampu | YG-LED , 9K hours , Without Driver |
| skrin sentuh | Without |
| permohonan | Instruments & Meters |
