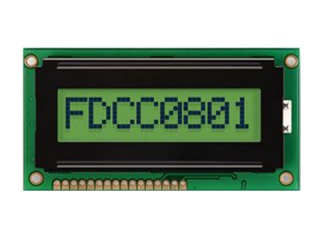

| Nombor Bahagian | FC0801A04-RNNYBW-16LE |
| Jenama | Fordata |
| Saiz | 2.3 |
| Permohonan | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | STN-LCD, LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | No |
| Antara muka | |
| jenama | Fordata |
| model | FC0801A04-RNNYBW-16LE |
| saiz pepenjuru | 2.3 inch |
| menaip | STN-LCD, LCM |
| format char | 5×8 dots |
| Saiz huruf | 6.45×10.75 mm |
| nada fon | 7.15×10.75 mm |
| kawasan aktif | 56.5(H)×10.75(V) mm |
| garis besar malap. | 84(H)×44(V) ×10(D) mm |
| kawasan bezel | 61.0(H)×15.8(V) mm |
| rawatan | - |
| kecerahan | - |
| nisbah kontras | 10:1 (Typ.) (TM) |
| arah pandang | 6 o'clock |
| masa tindak balas | 150/150 (Typ.)(Tr/Tf) |
| sudut pandangan | - |
| mod operasi | STN, Yellow/Green (Positive), Reflective |
| warna sokongan | Monochrome |
| sumber cahaya | No B/L |
| berat badan | - |
| direka untuk | Instruments & Meters |
| kadar bingkai | - |
| panel sentuh | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
