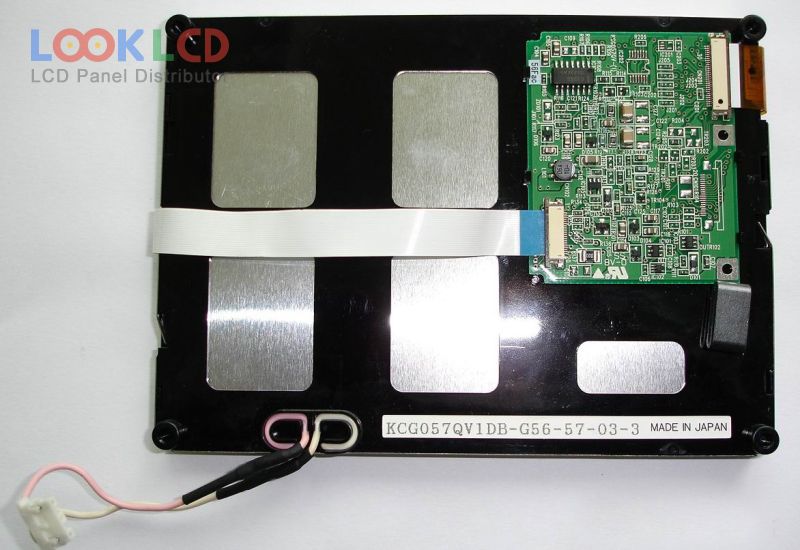

| Nombor Bahagian | KCG057QV1DB-G56 |
| Jenama | Kyocera |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 60:1 |
| Warna | Color |
| Lampu latar | CCFL |
| Antara muka | Parallel Data |
| jenama panel | Kyocera |
| model panel | KCG057QV1DB-G56 |
| jenis panel | CSTN-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | STN, Normally Black, Transmissive |
| kawasan aktif | 115.2×86.4 mm |
| garis besar | 144×104.8×13.2 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 60:1 (Typ.) |
| warna paparan | Color |
| masa tindak balas | 180/170 (Typ.)(Tr/Td) |
| sudut pandangan | 50/50/20/35 (Typ.)(CR≥2)(L/R/U/D) |
| kekerapan | 75Hz |
| jenis lampu | 1 pcsCCFLOptional |
| antara muka isyarat | Parallel Data (8-bit), 20 pins |
| permohonan | IA |
