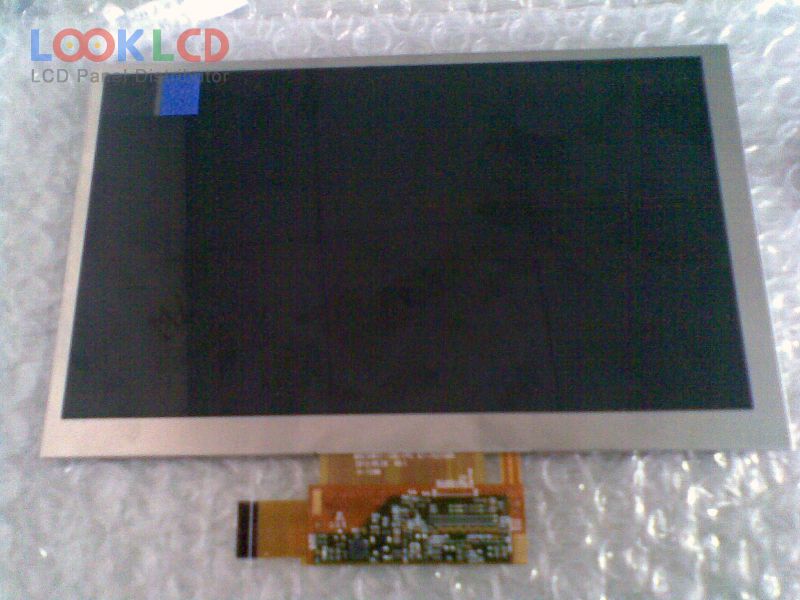

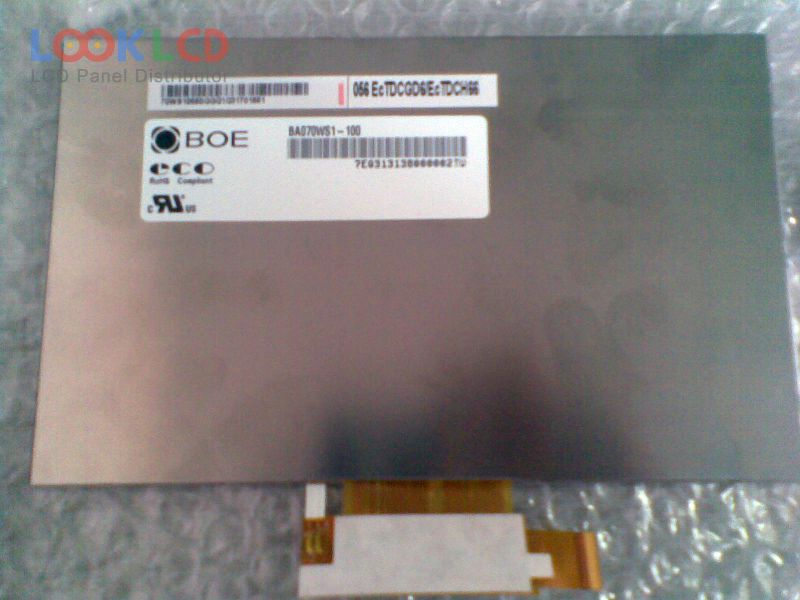

| Nombor Bahagian | BA070WS1-100 |
| Jenama | BOE |
| Saiz | 7.0 |
| Permohonan | MP4 |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | BOE |
| model panel | BA070WS1-100 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 167.25×104.65×3 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S6PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 39 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | MP4 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| TD070WGCB1 | TPO | 7.0 | 854×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
