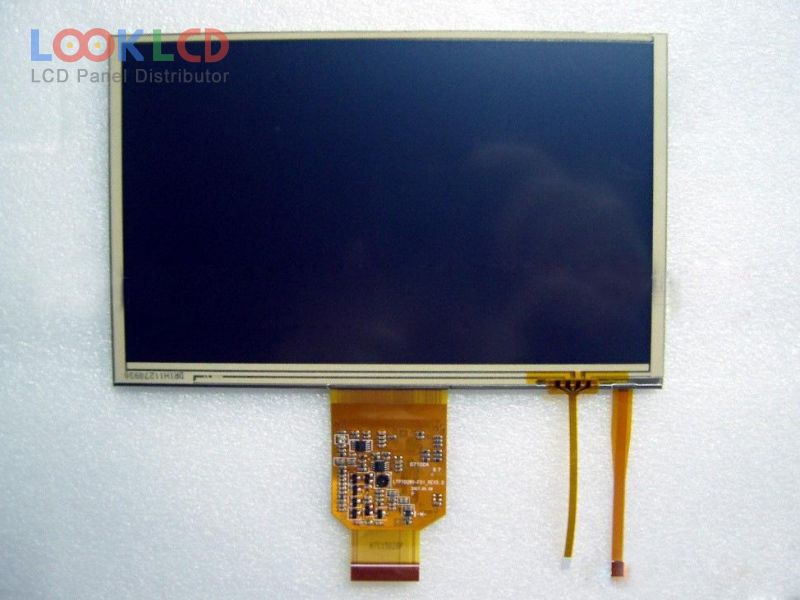

| Nombor Bahagian | LMS700KF01-001 |
| Jenama | Samsung |
| Saiz | 7.0 |
| Permohonan | MP4 |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 280 |
| CR | 300:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SAMSUNG |
| model panel | LMS700KF01-001 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800×480(RGB) , WVGA |
| mod paparan | TN, Normally White, TMR |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 163.2×104×4.7 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 280 cd/m² (Typ.) |
| nisbah kontras | 300 : 1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 22.7 (Typ.)(Tr+Td) |
| sudut pandangan | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S3PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.)(VCC) |
| permohonan | MP4 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| LQ070Y3DG02 | SHARP | 7.0 | 800×480 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| LB040Q03-TD01 | LG Display | 4.0 | 320×240 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
