| Nombor Bahagian | B156ZAN03.2 |
| Jenama | AUO |
| Saiz | 15.6 |
| Permohonan | Laptop |
| Resolusi | 3840×2160 |
| Komposisi | LTPS TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama | AUO |
| model | B156ZAN03.2 (AUO32EB) |
| saiz pepenjuru | 15.6 inch |
| menaip | LTPS TFT-LCD, LCM |
| format piksel | 3840(RGB)×2160 [UHD] 283PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 344.218(H)×193.622(V) mm |
| garis besar malap. | 350.66(H)×216.45(V) ×2.6(D) mm |
| kawasan bezel | - |
| rawatan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 1200:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod operasi | AHVA, Normally Black, Transmissive |
| warna sokongan | 16.7M 100% Adobe RGB |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| direka untuk | Laptop |
| kadar bingkai | 60Hz |
| panel sentuh | Without |

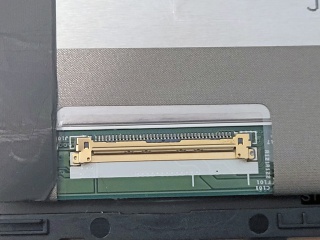

| jenis antara muka | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| LTN156FL01-D01 | Samsung | 15.6 | 3840×2160 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156B6-L04 | Innolux | 15.6 | 1366×768 |
