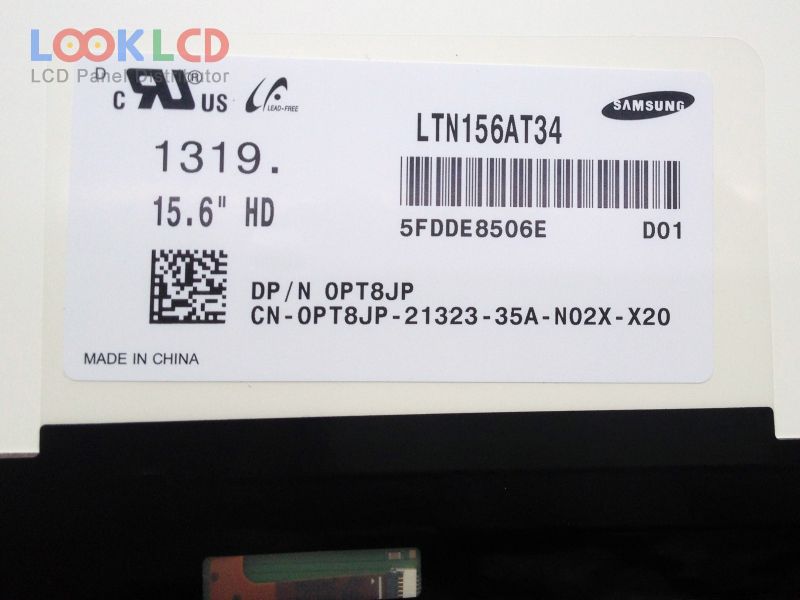

| Nombor Bahagian | LTN156AT34-D01 |
| Jenama | Samsung |
| Saiz | 15.6 |
| Permohonan | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN156AT34-D01 5 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.232×193.536 mm |
| garis besar | 359.5×223.8×3.2 mm |
| gaya bentuk | Slim (PCBA Flat, Depth ≤3.2mm) |
| permukaan | Glare (Haze 0%) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
