LG Display LP156WH4-TLB1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com

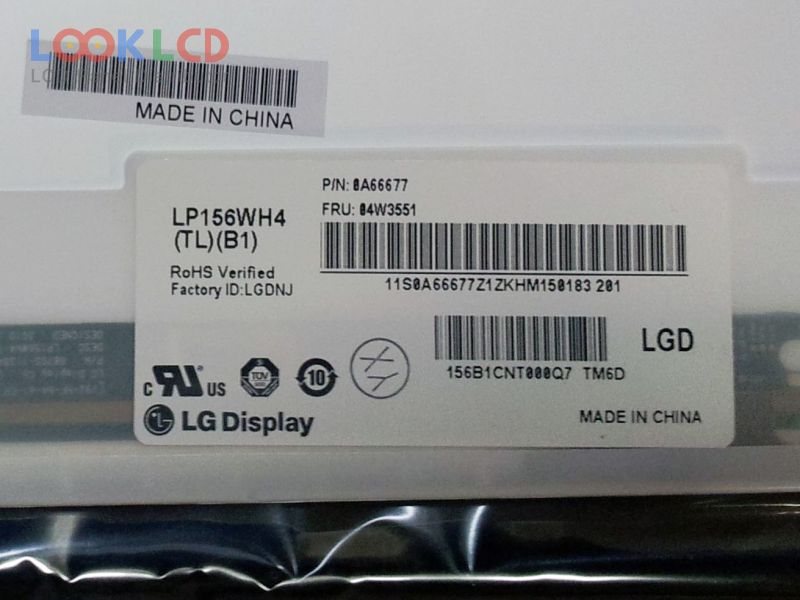

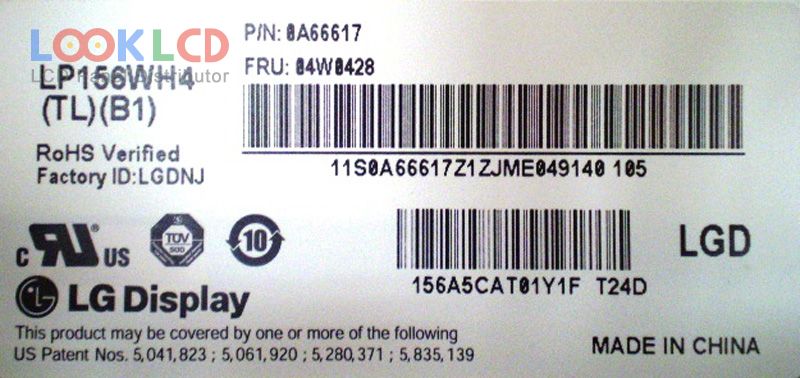

LP156WH4-TLB1


Jenama
LG Display
Saiz
15.6
Permohonan
NBPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
220
CR
400:1
Warna
262K
Lampu latar
WLED
Antara muka
LVDS
In Stock
85
Spesifikasi

Nombor Bahagian LP156WH4-TLB1
JenamaLG Display
Saiz15.6
PermohonanNBPC
Resolusi1366×768
KomposisiLCM
Kecerahan220
CR400:1
Warna262K
Lampu latarWLED
Antara mukaLVDS
jenama panelLG Display
model panelLP156WH4-TLB1 61 Compatible model
jenis panel a-Si TFT-LCD , LCM
saiz panel15.6 inch
resolusi1366(RGB)×768 , WXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif344.232×193.536 mm
garis besar359.3×209.5×5.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanAntiglare
kecerahan220 cd/m² (Typ.)
nisbah kontras400:1 (Typ.)
warna paparan262K (6-bit), CIE193160%
masa tindak balas16 (Typ.)(Tr+Td)
sudut pandangan45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu4 stringsWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (1 ch, 6-bit), 40 pins
voltan masukan3.3V (Typ.)
permohonanNBPC
Model Keluarga
LP156WD1-TLB1 LG Display 15.6 1600×900
LP156WF3-SLB2 LG Display 15.6 1920×1080
LP156WF4-SLB1 LG Display 15.6 1920×1080
LP156WH2-TLE1 LG Display 15.6 1366×768
LP156WH2-TPB1 LG Display 15.6 1366×768
LP156WH3-TLA2 LG Display 15.6 1366×768
LP156WH3-TLE1 LG Display 15.6 1366×768
LP156WH3-TLQ1 LG Display 15.6 1366×768
LP156WH3-TLSA LG Display 15.6 1366×768
LP156WH4-TLB1 LG Display 15.6 1366×768
