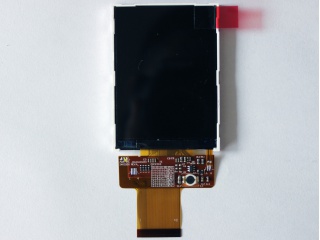

| Nombor Bahagian | AM-240320GTZQW-02H |
| Jenama | AMPIRE |
| Saiz | 2.8 |
| Permohonan | Mobile Phone |
| Resolusi | 240×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 450:1 |
| Warna | 65K |
| Lampu latar | WLED |
| Antara muka | CPU/RGB/SPI |
| jenama | AMPIRE |
| model | AM-240320GTZQW-02H |
| saiz pepenjuru | 2.8 inch |
| menaip | a-Si TFT-LCD, LCM |
| format piksel | 240(RGB)×320 [QVGA] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| kawasan aktif | 43.2(H)×57.6(V) mm |
| garis besar malap. | 49(H)×67.5(V) ×4.9(D) mm |
| kecerahan | 280 cd/m² (Typ.) |
| nisbah kontras | 450:1 (Typ.) (TM) |
| arah pandang | Symmetry |
| masa tindak balas | 15/20 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod operasi | MVA, Normally Black, Transmissive |
| warna sokongan | 65K 69% NTSC |
| sumber cahaya | WLED [3S2P] , With LED Driver |
| berat badan | TBD |
| direka untuk | Mobile Phone |
| kadar bingkai | 60Hz |
| panel sentuh | Without |
| jenis antara muka | CPU/RGB/SPI , 40 pins FPC |
| bekalan kuasa | 2.8V (Typ.) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AM-240320-022F | Other | 2.2 | 240×320 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| C0283QGLD-T | CMEL | 2.8 | 240×320 |
| ET028002DMU | EDT | 2.8 | 240×320 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8 | 128×64 |
| LMS283GF11 | Samsung | 2.8 | 240×320 |
| LTV280QV-F02 | Samsung | 2.8 | 320×240 |
| TD028STEB1 | TPO | 2.8 | 240×320 |
| TFT240320-237-E | Other | 2.8 | 240×320 |
| TM028LDZ09 | Tianma | 2.8 | 240×400 |
