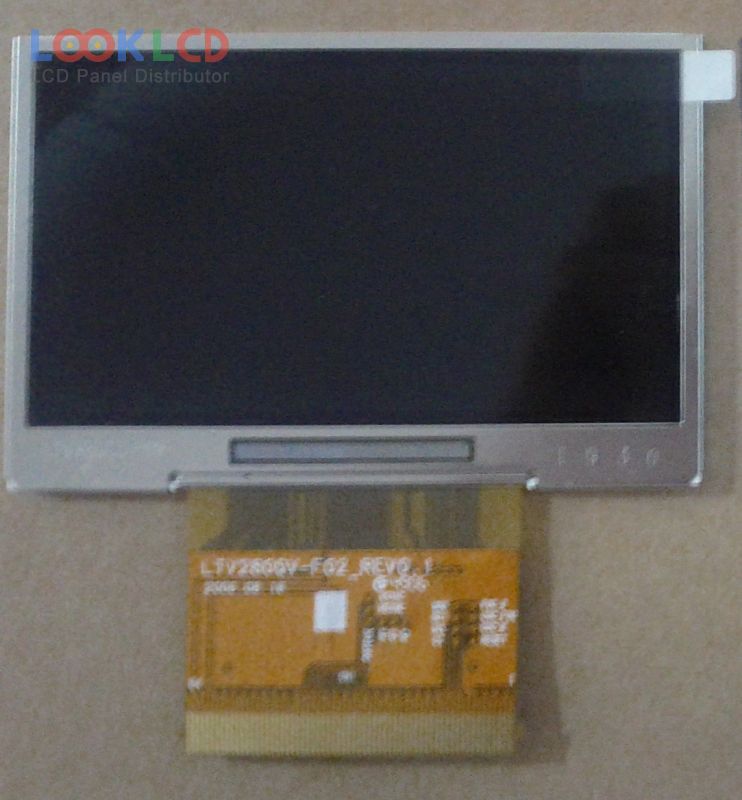

| Nombor Bahagian | LTV280QV-F02 |
| Jenama | Samsung |
| Saiz | 2.8 |
| Permohonan | DVC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 250:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SAMSUNG |
| model panel | LTV280QV-F02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.8 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 61.44×34.32 mm |
| garis besar | 68.41×45.23×2.97 mm |
| permukaan | |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 75Hz |
| jenis lampu | 4S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 64 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DVC |
