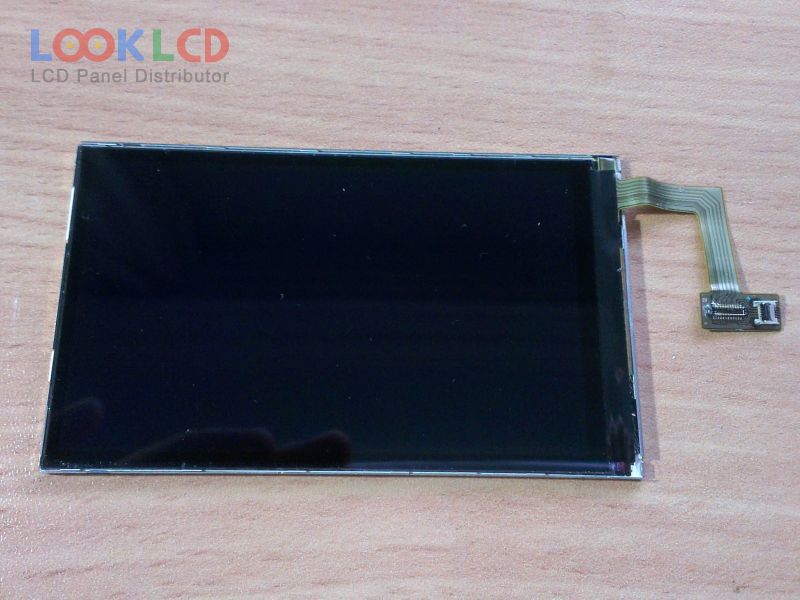

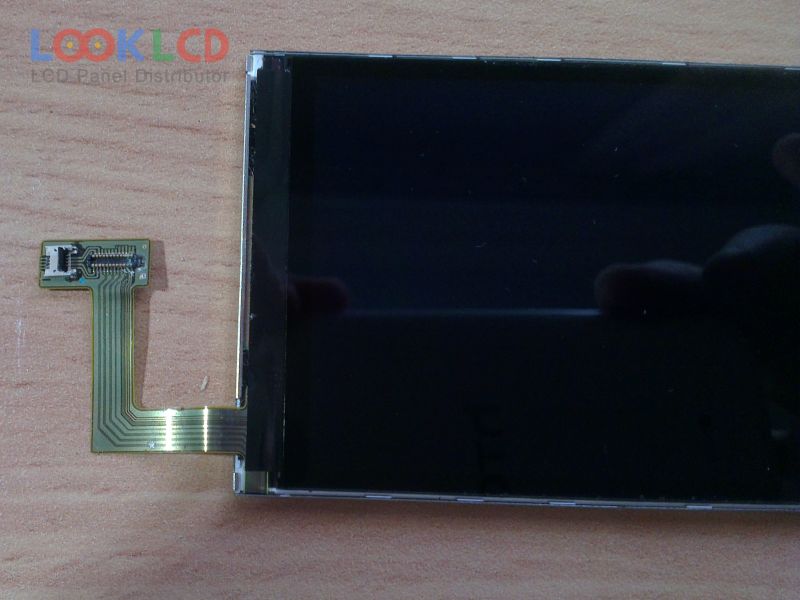

| Nombor Bahagian | ACX565AKM-7 |
| Jenama | SONY |
| Saiz | 3.5 |
| Permohonan | MPH |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 275 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | CDP |
| jenama panel | SONY |
| model panel | ACX565AKM-7 |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | VSPEC II, Normally Black, Transflective |
| kawasan aktif | 76.8×46.08 mm |
| garis besar | 87.9×52.18 mm |
| permukaan | |
| kecerahan | 275 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.)(Transmissive)24:1 (Typ.)(Reflective) |
| warna paparan | 16.7M (8-bit), CIE193170% |
| masa tindak balas | 12/7 (Typ.)(Tr/Td) |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | 3S2PWLEDWithout Driver |
| antara muka isyarat | CDP (2 Lane) + SPI, 24 pins |
| voltan masukan | 1.8/2.75V (Typ.)(VDDI/VDD) |
| permohonan | MPH |
