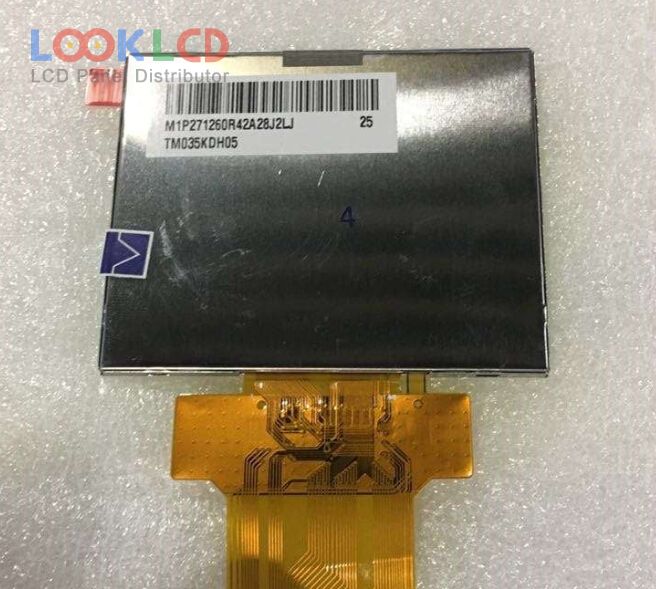

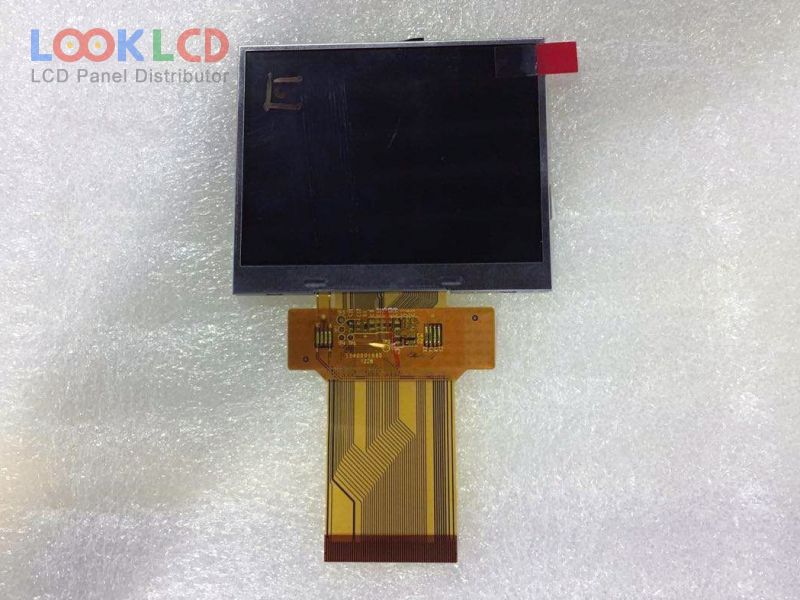

| Nombor Bahagian | TM035KDH05 |
| Jenama | Tianma |
| Saiz | 3.5 |
| Permohonan | DSC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 420 |
| CR | 350:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Parallel/Serial |
| jenama panel | TIANMA |
| model panel | TM035KDH05 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 70.08×52.56 mm |
| garis besar | 76.9×63.9×3 mm |
| permukaan | Clear, Hard coating (3H) |
| kecerahan | 420 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Typ.) |
| warna paparan | 16.7M , CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6S1PWLEDWithout Driver |
| antara muka isyarat | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DSC |
