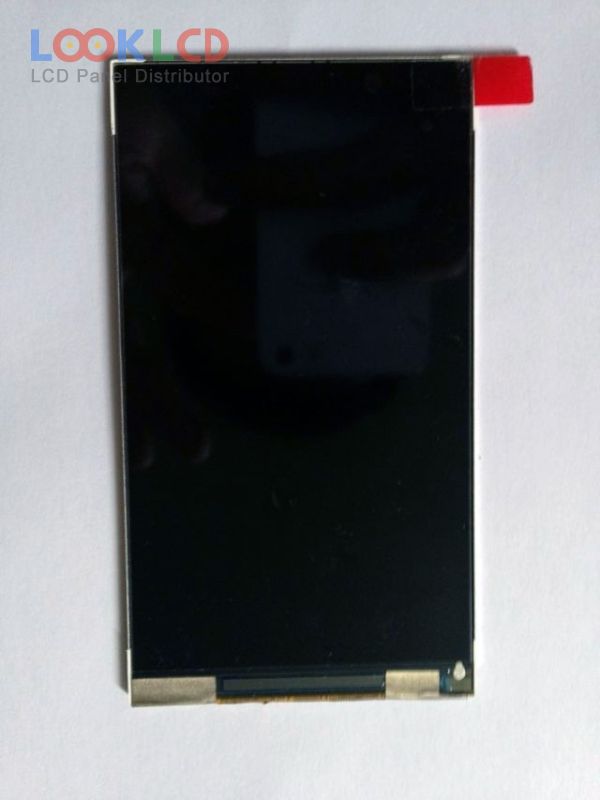

| Nombor Bahagian | PJ045IC-01F |
| Jenama | Innolux |
| Saiz | 4.5 |
| Permohonan | MPH |
| Resolusi | 720×1280 |
| Komposisi | LCM |
| Kecerahan | 380 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | CHIMEI INNOLUX |
| model panel | PJ045IC-01F |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 4.5 inch |
| resolusi | 720(RGB)×1280 , WXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 55.512×98.688 mm |
| garis besar | 60.04×108.72 mm |
| permukaan | |
| kecerahan | 380 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193170% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S2PWLEDWithout Driver |
| antara muka isyarat | MIPI (4 data lanes), 30 pins |
| voltan masukan | 1.8/2.8V (Typ.)(VDDIO/VCI) |
| permohonan | MPH |
