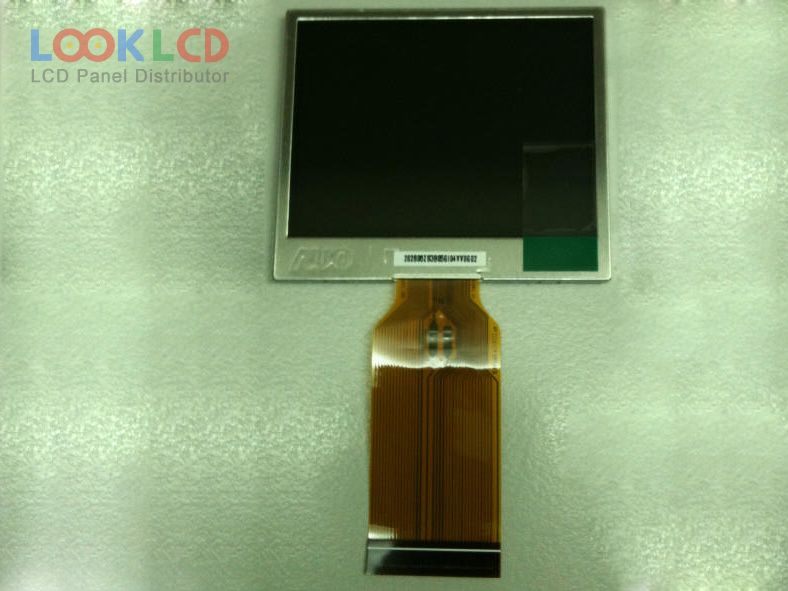

| Nombor Bahagian | A024CN03 V2 |
| Jenama | AUO |
| Saiz | 2.4 |
| Permohonan | DSC |
| Resolusi | 480×234 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 250:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | AUO |
| model panel | A024CN03 V2 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.4 inch |
| resolusi | 480×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 48×35.685 mm |
| garis besar | 54.9×47.45 mm |
| permukaan | Hard coating |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 250:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 20/30 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLED |
| antara muka isyarat | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| voltan masukan | 3.3/3.3/12.5/-12.5V (Typ.)(VCC/PVDD/VGH/VGL) |
| rohs: | |
| permohonan | DSC |
