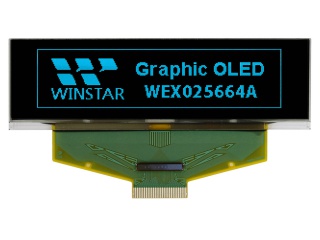

| Nombor Bahagian | WEX025664AS |
| Jenama | Winstar |
| Saiz | 2.8 |
| Permohonan | Automotive Electroni |
| Resolusi | 256×64 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama panel | Winstar |
| model panel | WEX025664AS |
| saiz panel | 2.8" |
| jenis panel | PM-OLED, OLED |
| resolusi | 256×64, 94PPI |
| format piksel | Rectangle |
| kawasan paparan | 69.098(W)×17.258(H) mm |
| pembukaan bezel | 71.104(W)×19.26(H) mm |
| saiz garis besar | 84(W)×25.8(H) mm |
| permukaan | - |
| sudut pandangan | - |
| mod paparan | - |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | Mono(Blue) |
| jenis lampu | self |
| kekerapan | - |
| skrin sentuh | Without |
| ic pemandu | TABBuilt-in SSD1322UR1 |
| berat panel | - |
| permohonan | Automotive Electronics Handheld & PDA Instruments & Meters |
| antara muka isyarat | CPU/SPI , 30 pins FPC |
| voltan masukan | 3.0V (Typ.) |
