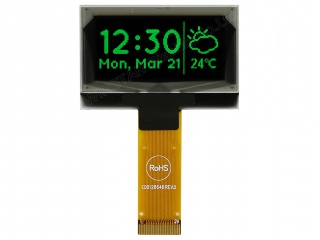

| Nombor Bahagian | WEO012864BG |
| Jenama | Winstar |
| Saiz | 1.54 |
| Permohonan | Handheld & PDA Instr |
| Resolusi | 128×64 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antara muka | 8-bit |
| jenama panel | Winstar |
| saiz panel | 1.54" |
| resolusi | 128×64, 92PPI |
| kawasan paparan | 35.056(W)×17.52(H) mm |
| saiz garis besar | 42.24(W)×29.14(H) mm |
| sudut pandangan | - |
| pandangan terbaik pada | Symmetry |
| warna paparan | Mono(Green) |
| kekerapan | - |
| ic pemandu | COG Built-in SSD1305Z |
| berat panel | - |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| voltan masukan | 3.0V (Typ.) |
| persekitaran | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
| model panel | WEO012864BG |
| jenis panel | PM-OLED , OLED |
| format piksel | Rectangle |
| pembukaan bezel | 37.056(W)×19.52(H) mm |
| permukaan | - |
| mod paparan | - |
| masa tindak balas | - |
| jenis lampu | self |
| skrin sentuh | Without |
| permohonan | Handheld & PDA Instruments & Meters Comm Device Home Appliance Healthcare |
| DLC0154AZG-T | Other | 1.54 | 240×240 |
| H154QN01 V2 | AUO | 1.54 | 240×240 |
| HGS128647-Y-EH-LV | Other | 1.54 | 128×64 |
| LH154Q01-TD01 | LG Display | 1.54 | 240×240 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
