HGS128647-Y-EH-LV

HGS128647-Y-EH-LV

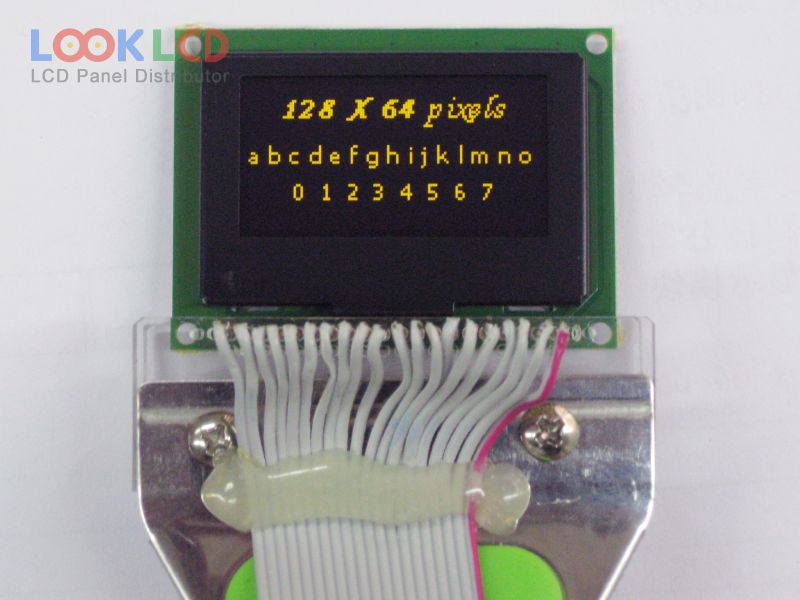

HGS128647-Y-EH-LV thumb
Jenama
Other
Saiz
1.54
Permohonan
IA
Resolusi
128×64
Komposisi
OLED
Kecerahan
150
CR
2000:1
Warna
Mono(Yellow)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
13674
Spesifikasi

Nombor Bahagian HGS128647-Y-EH-LV
JenamaOther
Saiz1.54
PermohonanIA
Resolusi128×64
KomposisiOLED
Kecerahan150
CR2000:1
WarnaMono(Yellow)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTSINGTEK
model panelHGS128647-Y-EH-LV
jenis panel PM-OLED , OLED
saiz panel1.54 inch
resolusi128×64
kawasan aktif35.056×17.52 mm
garis besar54×39.5×8.5 mm
permukaan
kecerahan150 cd/m² (Typ.)
nisbah kontras2000 : 1 (Min.)
warna paparanMono(Yellow)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
ic pemanduBuilt-in SSD1305
antara muka isyarat8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
voltan masukan3.3V (Typ.)
rohs:
permohonanIA
