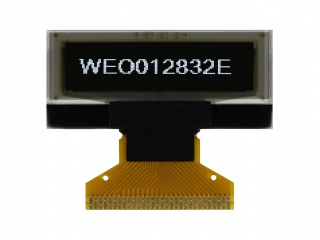

| Nombor Bahagian | WEO012832EW |
| Jenama | Winstar |
| Saiz | 1.0 |
| Permohonan | Handheld & PDA W |
| Resolusi | 128×32 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | 8-bit |
| pengilang | Winstar |
| nama model | WEO012832EW |
| saiz skrin | 1.0 inch |
| jenis skrin | OLED , PM-OLED |
| nombor piksel | 128×32 127PPI |
| susunan | Rectangle |
| kawasan aktif (mm) | 25.58 × 6.38 (H×V) |
| garis besar (mm) | 33.4 × 14.5 × 1.68 (H×V×D) |
| kawasan bezel (mm) | 27.68 × 7.8 (H×V) |
| rawatan | - |
| sudut pandangan | - |
| tindak balas | - |
| pandangan yang baik di | Symmetry |
| mod kerja | - |
| kedalaman warna | Mono(White) |
| lampu latar | self |
| jisim | - |
| digunakan untuk | Handheld & PDA Wearable Instruments & Meters |
| kadar segar semula | - |
| skrin sentuh | Without |
| senarai ic pemandu | Built-in COG SSD1306BZ |
| jenis isyarat | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC |
| bekalan voltan | 3.0V (Typ.) |
| DLC0104AZOG | Other | 1.0 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0073-G-E | Other | 1.0 | 128×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| RGS10128032WR003 | RiTdisplay | 1.0 | 128×32 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| UG-2832TLBGG01 | WiseChip | 1.0 | 128×32 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
