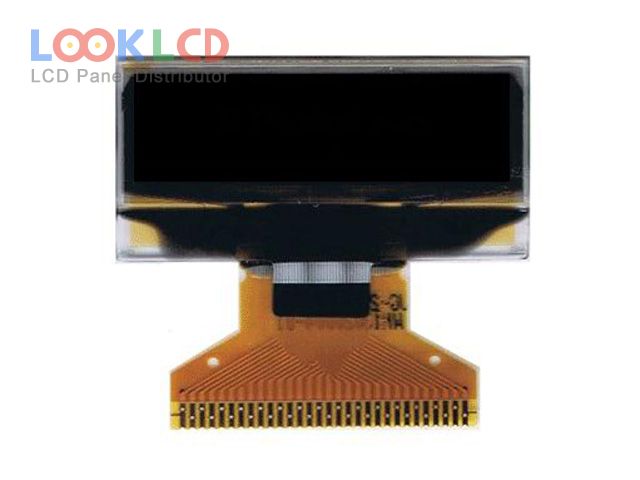

| Nombor Bahagian | DLC0104AZOG |
| Jenama | Other |
| Saiz | 1.0 |
| Permohonan | |
| Resolusi | 128×32 |
| Komposisi | OLED |
| Kecerahan | 120 |
| CR | 2000:1 |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | CPU/SPI/I²C |
| jenama panel | DLC |
| model panel | DLC0104AZOG |
| jenis panel | PM-OLED , OLED |
| saiz panel | 1.0 inch |
| resolusi | 128×32 |
| kawasan aktif | 25.58×6.38 mm |
| garis besar | 30.4×14.5×1.5 mm |
| permukaan | |
| kecerahan | 120 cd/m² (Typ.) |
| nisbah kontras | 2000 : 1 (Typ.) |
| warna paparan | Mono(White) (1-bit) |
| sudut pandangan | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pemandu | COG Built-in SSD1305 |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| voltan masukan | 2.8/12.0V (Typ.)(VDD/VCC) |
