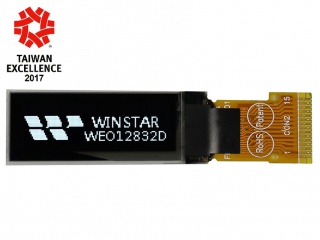

| Nombor Bahagian | WEO012832DW |
| Jenama | Winstar |
| Saiz | 0.91 |
| Permohonan | Wearable Instruments |
| Resolusi | 128×32 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(White) |
| Lampu latar | self |
| Antara muka | 4-wire |
| jenama | Winstar |
| saiz pepenjuru | 0.91 inch |
| format piksel | 128×32 145PPI |
| kawasan aktif | 22.38(H)×5.584(V) mm |
| kawasan bezel | 24.384(H)×7.58(V) mm |
| arah pandang | Symmetry |
| sudut pandangan | - |
| warna sokongan | Mono(White) |
| berat badan | - |
| kadar bingkai | - |
| perincian d-ic | COG Built-in SSD1306BZ |
| jenis antara muka | 4-wire SPI , 15 pins FPC |
| bekalan kuasa | 3.0V (Typ.) |
| model | WEO012832DW |
| menaip | PM-OLED , OLED |
| konfigurasi | Rectangle |
| garis besar malap. | 30(H)×11.5(V) ×1.75(D) mm |
| rawatan | - |
| masa tindak balas | - |
| mod operasi | - |
| sumber cahaya | self |
| direka untuk | Wearable Instruments & Meters |
| panel sentuh | Without |
