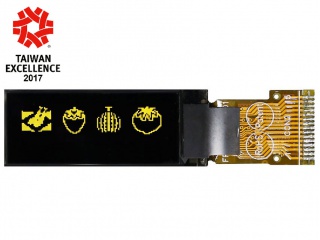

| Nombor Bahagian | WEO012832DL |
| Jenama | Winstar |
| Saiz | 0.91 |
| Permohonan | Wearable Instruments |
| Resolusi | 128×32 |
| Komposisi | OLED , PM-OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | 4-wire |
| pengilang | Winstar |
| saiz skrin | 0.91 inch |
| nombor piksel | 128×32 145PPI |
| kawasan aktif (mm) | 22.38 × 5.584 (H×V) |
| kawasan bezel (mm) | 24.384 × 7.58 (H×V) |
| sudut pandangan | - |
| pandangan yang baik di | Symmetry |
| kedalaman warna | Mono(Yellow) |
| jisim | - |
| kadar segar semula | - |
| senarai ic pemandu | Built-in COG SSD1306BZ |
| jenis isyarat | 4-wire SPI , 15 pins FPC |
| bekalan voltan | 3.0V (Typ.) |
| nama model | WEO012832DL |
| jenis skrin | OLED , PM-OLED |
| susunan | Rectangle |
| garis besar (mm) | 30 × 11.5 × 1.75 (H×V×D) |
| rawatan | - |
| tindak balas | - |
| mod kerja | - |
| lampu latar | self |
| digunakan untuk | Wearable Instruments & Meters |
| skrin sentuh | Without |
| DLC0090AZG | Other | 0.91 | 80×160 |
| OEL9M0068-B-E | Other | 0.91 | 128×32 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-R-E | Other | 0.91 | 128×32 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M0084-R-E | Other | 0.91 | 128×32 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
