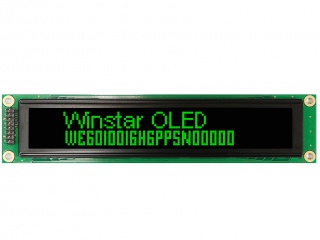

| Nombor Bahagian | WEG010016HG |
| Jenama | Winstar |
| Saiz | 4.9 |
| Permohonan | Instruments & Meters |
| Resolusi | 100×16 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Green) |
| Lampu latar | self |
| Antara muka | CPU/SPI |
| jenama | Winstar |
| saiz pepenjuru | 4.9 inch |
| format piksel | 100×16 20PPI |
| kawasan aktif | 121.9(H)×19.42(V) mm |
| kawasan bezel | 149(H)×23(V) mm |
| arah pandang | Symmetry |
| sudut pandangan | - |
| warna sokongan | Mono(Green) |
| berat badan | - |
| kadar bingkai | - |
| perincian d-ic | COG Built-in WS0010 |
| jenis antara muka | CPU/SPI , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
| model | WEG010016HG |
| menaip | PM-OLED , OLED |
| konfigurasi | Rectangle |
| garis besar malap. | 180(H)×40(V) ×9.3(D) mm |
| rawatan | - |
| masa tindak balas | - |
| mod operasi | - |
| sumber cahaya | self |
| direka untuk | Instruments & Meters |
| panel sentuh | Without |
