Lumineq EL320.240-FA3 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

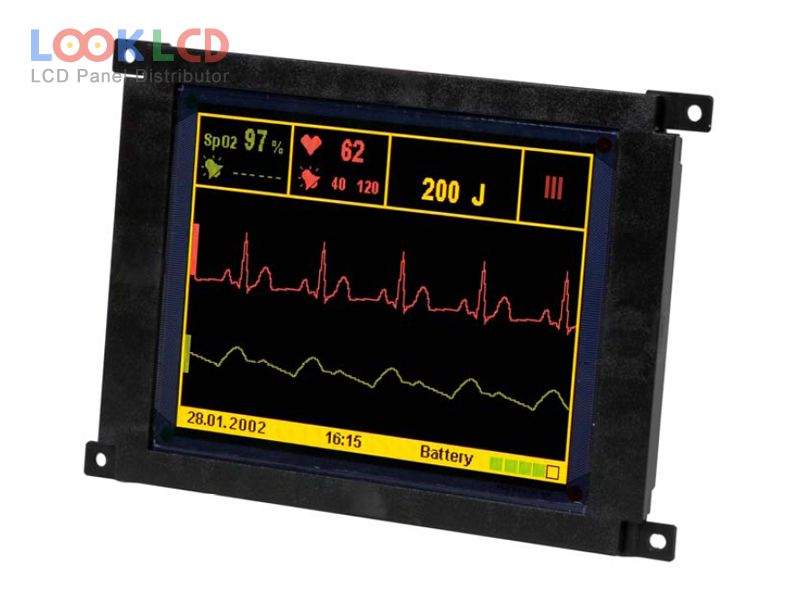

EL320.240-FA3

EL320.240-FA3
EL320.240-FA3 thumb
Jenama
Lumineq
Saiz
4.9
Permohonan
IA
Resolusi
320×240
Komposisi
EL
Kecerahan
95
CR
1000:1
Warna
16
Lampu latar
self
Antara muka
In Stock
12
Spesifikasi

Nombor Bahagian EL320.240-FA3
JenamaLumineq
Saiz4.9
PermohonanIA
Resolusi320×240
KomposisiEL
Kecerahan95
CR1000:1
Warna16
Lampu latarself
Antara muka
jenama panelLumineq
model panelEL320.240-FA3
jenis panel EL , EL
saiz panel4.9 inch
resolusi320(RG)×240 , QVGA
kawasan aktif99.15×74.36 mm
garis besar150.3×104.8 mm
permukaan
kecerahan95 cd/m² (Typ.)
nisbah kontras1000 : 1 (Typ.)
warna paparan16 (2-bit)
sudut pandangan89/89/89/89 (Typ.)(L/R/U/D)
kekerapan120Hz
voltan masukan12.0V (Typ.)
permohonanIA
Model Keluarga
EL320.240-FA3 Lumineq 4.9 320×240
EL320.240.36 Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB CCB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 IN Lumineq 5.7 320×240
EL320.256-F6 Lumineq 4.8 320×256
EL320.256-FD6 Lumineq 4.8 320×256
EL320.256-FD7 HB Lumineq 4.8 320×256
