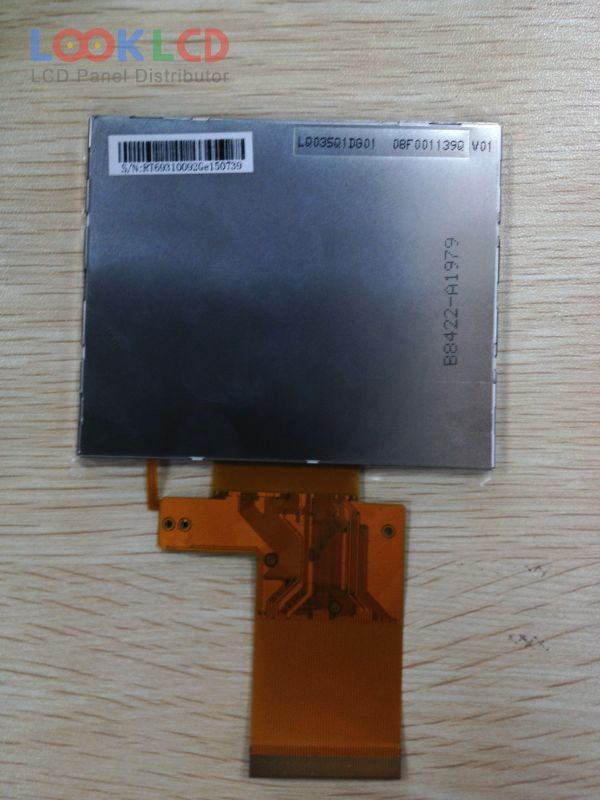

| Nombor Bahagian | LQ035Q1DG01 |
| Jenama | SHARP |
| Saiz | 3.5 |
| Permohonan | |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 340 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ035Q1DG01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 70.56×52.92 mm |
| garis besar | 76.9×63.9×3.65 mm |
| permukaan | |
| kecerahan | 340 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 30/30 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit) + SPI, 54 pins |
| voltan masukan | 3.3/3.3V (Typ.)(VDD/AVDD) |
