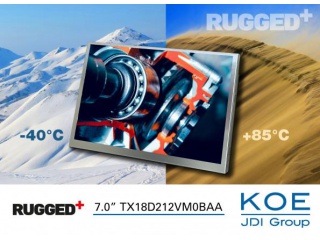

| Nombor Bahagian | TX18D212VM0BAA |
| Jenama | KOE |
| Saiz | 7.0 |
| Permohonan | Industrial Outdoor H |
| Resolusi | 1280×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | KOE |
| saiz pepenjuru | 7.0 inch |
| format piksel | 1280(RGB)×768 [WXGA] 213PPI |
| kawasan aktif | 152.448(H)×91.4688(V) mm |
| kawasan bezel | 154.5(H)×93.5(V) mm |
| kecerahan | 1000 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 72% NTSC |
| berat badan | 212g (Typ.) |
| kadar bingkai | 60Hz |
| model | TX18D212VM0BAA |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 164.4(H)×105(V) ×13.5(D) mm |
| rawatan | - |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 25 (Max.)(Tr+Tf) |
| mod operasi | IPS, Normally Black, Transmissive |
| sumber cahaya | WLED , 50K hours , With LED Driver |
| direka untuk | Industrial Outdoor High Brightness |
| panel sentuh | Without |
