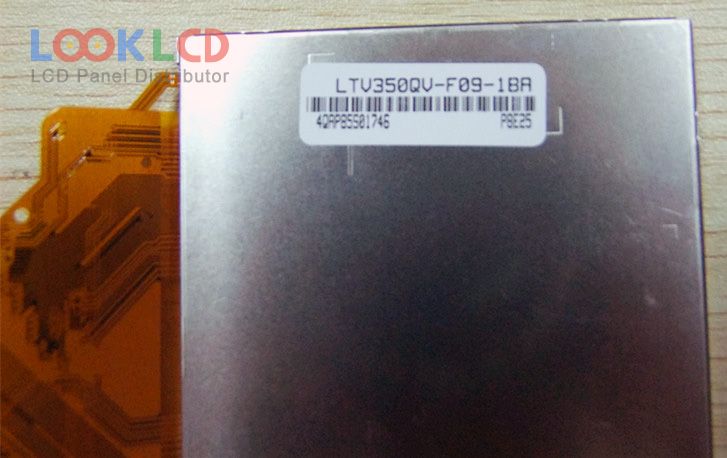

| Nombor Bahagian | LTV350QV-F09 |
| Jenama | Samsung |
| Saiz | 3.5 |
| Permohonan | DSC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 320 |
| CR | 300:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SAMSUNG |
| model panel | LTV350QV-F09 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, TMR |
| kawasan aktif | 70.08×52.56 mm |
| garis besar | 76.9×63.9×4.45 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 320 cd/m² (Typ.) |
| nisbah kontras | 300 : 1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| voltan masukan | 3.3/4.9/18.0/-10.0V (Typ.)(VCC/DDVDH/VGH/VGL) |
| permohonan | DSC |
