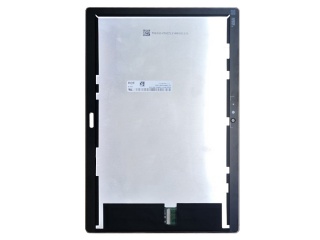

| Nombor Bahagian | TV101WUM-LL1 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | Pad & Tablet |
| Resolusi | 1200×1920 |
| Komposisi | a-Si TFT-LCD , Assem |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S4P |
| Antara muka | MIPI |
| jenama panel | BOE |
| saiz panel | 10.1" |
| resolusi | 1200(RGB)×1920, WUXGA, 225PPI |
| kawasan paparan | 135.36(W)×216.576(H) mm |
| saiz garis besar | 162.1(W)×237.14(H) ×4.6(D) mm |
| kecerahan | 380 cd/m² (Typ.) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 99% sRGB |
| kekerapan | 60Hz |
| berat panel | 190g (Typ.) |
| antara muka isyarat | MIPI (4 data lanes) , 45 pins Connector |
| voltan masukan | 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE) |
| persekitaran | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| model panel | TV101WUM-LL1 |
| jenis panel | a-Si TFT-LCD , Assembly |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Hard coating |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| mod paparan | - |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | 8S4P WLED , Without Driver |
| skrin sentuh | On-Cell Touch |
| permohonan | Pad & Tablet |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| M101NWT2 R0 | IVO | 10.1 | 1024×600 |
| N101N6-L02 | Innolux | 10.1 | 1024×576 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
