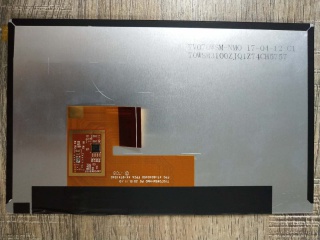

| Nombor Bahagian | TV070WSM-NM0 |
| Jenama | BOE |
| Saiz | 7.0 |
| Permohonan | Pad & Tablet |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | TV070WSM-NM0 |
| saiz panel | 7.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1024(RGB)×600, WSVGA, 169PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 153.6(W)×90(H) mm |
| pembukaan bezel | - |
| saiz garis besar | 161.16(W)×100.97(H) ×4.8(D) mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | ADS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| warna paparan | 16.7M 50% NTSC |
| jenis lampu | WLED , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 90.0g (Max.) |
| permohonan | Pad & Tablet |
| antara muka isyarat | MIPI (4 data lanes) , 40 pins Connector |
| voltan masukan | 1.8/3.3/9/19/-7V (Typ.)(VDD1/VDD3/AVDD/VGH/VGL) |
| persekitaran | Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -40 ~ 85 °C |
