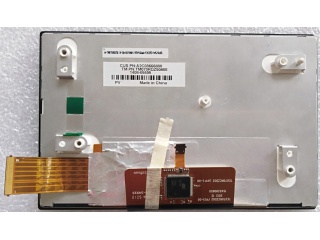

| Nombor Bahagian | TM070RDZ50 |
| Jenama | TIANMA |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | |
| jenama | TIANMA |
| saiz pepenjuru | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 133PPI |
| kawasan aktif | 157.2(H)×82.32(V) mm |
| kecerahan | - |
| arah pandang | - |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10) |
| warna sokongan | 262K |
| berat badan | - |
| kadar bingkai | 60Hz |
| model | TM070RDZ50 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | - |
| nisbah kontras | 400:1 (Typ.) (TM) |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| mod operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED |
| direka untuk | Automotive Display |
| panel sentuh | PCAP |
