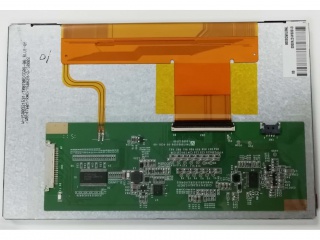

| Nombor Bahagian | TM070RDSG08 |
| Jenama | TIANMA |
| Saiz | 7.0 |
| Permohonan | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | 10S3P |
| Antara muka | LVDS |
| pengilang | TIANMA |
| saiz skrin | 7.0 inch |
| nombor piksel | 800(RGB)×480 (WVGA) 133PPI |
| kawasan aktif (mm) | 152.4 × 91.44 (H×V) |
| kawasan bezel (mm) | 155.4 × 94.44 (H×V) |
| kecerahan | 500 cd/m² (Typ.) |
| sudut pandangan | 70/70/70/60 (Typ.)(CR≥10) |
| pandangan yang baik di | - |
| kedalaman warna | 262K/16.7M 70% NTSC |
| jisim | 176g (Typ.) |
| kadar segar semula | 60Hz |
| jenis isyarat | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | TM070RDSG08 |
| jenis skrin | LCM , a-Si TFT-LCD |
| susunan | RGB Vertical Stripe |
| garis besar (mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| rawatan | Antiglare |
| nisbah kontras | 500 : 1 (Typ.) (TM) |
| tindak balas | 25 (Typ.)(Tr+Td) ms |
| mod kerja | TN, Normally White, Transmissive |
| lampu latar | 10S3P WLED , 50K hours , With LED Driver |
| digunakan untuk | Industrial |
| skrin sentuh | Without |
