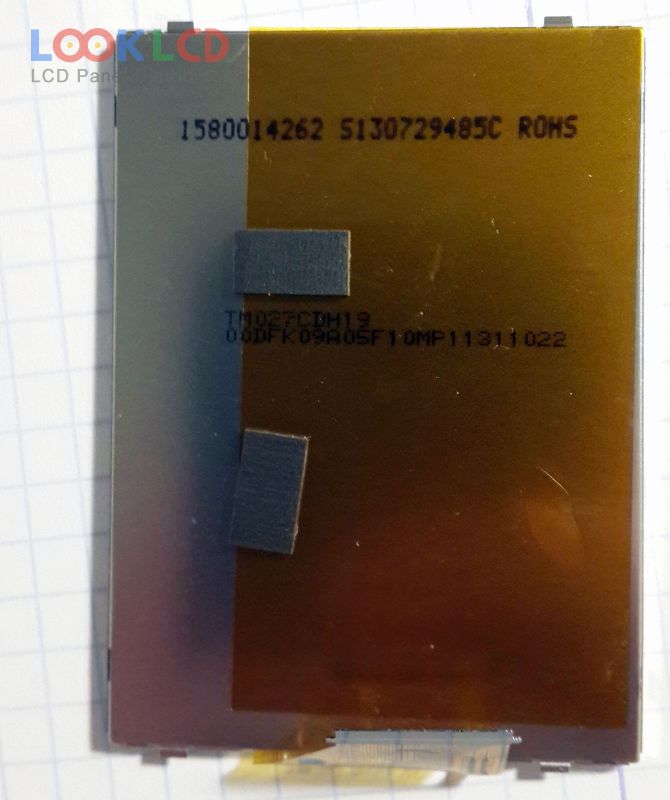

| Nombor Bahagian | TM027CDH19 |
| Jenama | Tianma |
| Saiz | 2.7 |
| Permohonan | DSC |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | TIANMA |
| model panel | TM027CDH19 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 54×40.5 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193145% |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLED |
| antara muka isyarat | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DSC |
