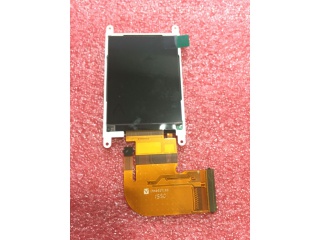

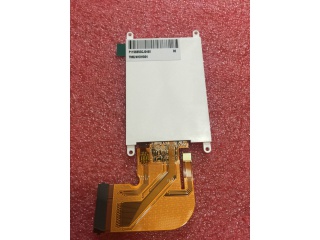

| Nombor Bahagian | TM024HDHG04 |
| Jenama | TIANMA |
| Saiz | 2.4 |
| Permohonan | Handheld & PDA |
| Resolusi | 240×320 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | - |
| Lampu latar | WLED |
| Antara muka | CPU |
| jenama panel | TIANMA |
| model panel | TM024HDHG04 |
| saiz panel | 2.4" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 240(RGB)×320, QVGA, 166PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 36.72(W)×48.96(H) mm |
| pembukaan bezel | - |
| kecerahan | - |
| nisbah kontras | 500:1 (Typ.) (TM) |
| sudut pandangan | 70/70/70/60 (Typ.)(CR≥10) |
| mod paparan | TN, Normally White, Transmissive |
| pandangan terbaik pada | - |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| warna paparan | |
| jenis lampu | WLED |
| kekerapan | - |
| skrin sentuh | Without |
| berat panel | - |
| permohonan | Handheld & PDA |
| antara muka isyarat | CPU FPC |
| persekitaran | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
