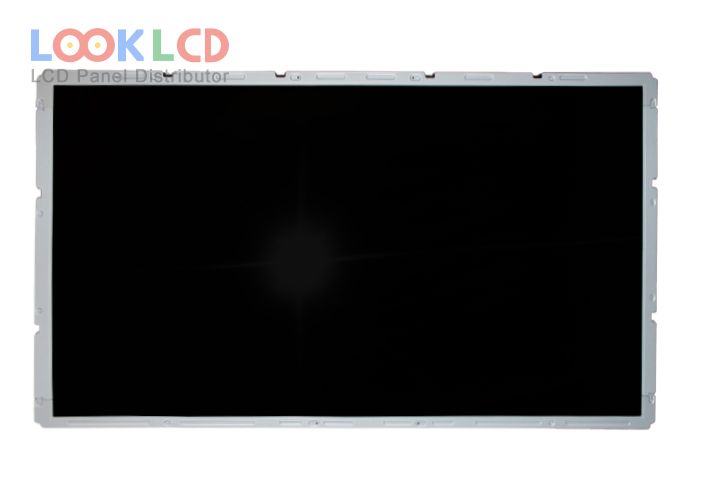

| Nombor Bahagian | T546HW01 V1 |
| Jenama | AUO |
| Saiz | 55 |
| Permohonan | LCTV |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 5000:1 |
| Warna | 1.07B |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | T546HW01 V1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 55 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mod paparan | AMVA, Normally Black, Transmissive |
| kawasan aktif | 1209.6×680.4 mm |
| garis besar | 1286×745 mm |
| permukaan | Antiglare (Haze 11%) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 5000:1 (Typ.) |
| warna paparan | 1.07B (8-bit + Hi-FRC), CIE193172% |
| masa tindak balas | 6.5 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 120Hz |
| jenis lampu | 18 pcsCCFLEmbedded (Inverter) |
| antara muka isyarat | LVDS (4 ch, 10-bit), 92 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | LCTV |
