BOE HV320WX2-500 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

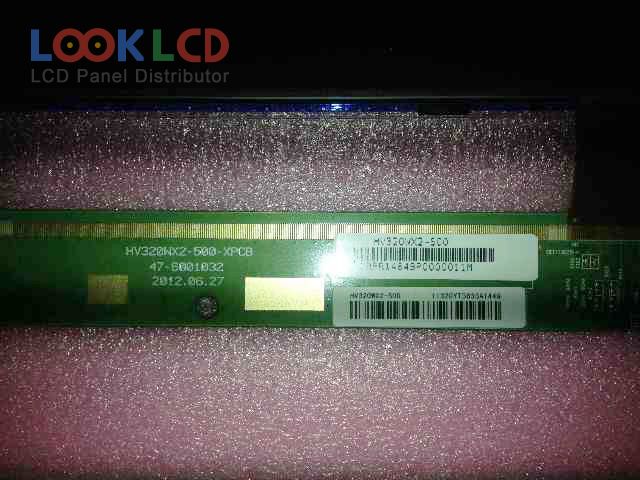

HV320WX2-500

HV320WX2-500
HV320WX2-500 thumb
Jenama
BOE
Saiz
31.5
Permohonan
LCTV
Resolusi
1366×768
Komposisi
CELL
Kecerahan
0
CR
1200:1
Warna
16.7M
Lampu latar
No B/L
Antara muka
Mini LVDS
In Stock
7957
Spesifikasi

Nombor Bahagian HV320WX2-500
JenamaBOE
Saiz31.5
PermohonanLCTV
Resolusi1366×768
KomposisiCELL
Kecerahan0
CR1200:1
Warna16.7M
Lampu latarNo B/L
Antara mukaMini LVDS
jenama panelBOE
model panelHV320WX2-500
jenis panel a-Si TFT-LCD , CELL
saiz panel31.5 inch
resolusi1366(RGB)×768 , WXGA
mod paparanAFFS, Normally Black, Transmissive
kawasan aktif697.685×392.256 mm
garis besar716×408.6 mm
permukaanAntiglare (Haze 10%), Hard coating (3H)
ketransmisian6.5% (Typ.)(with Polarizer)
nisbah kontras1200:1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas8 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
antara muka isyaratMini LVDS
permohonanLCTV
Model Keluarga
HV320WHB-N00 BOE 31.5 1366×768
HV320WHB-N06 BOE 31.5 1366×768
HV320WHB-N80 BOE 31.5 1366×768
HV320WX2-200 BOE 31.5 1366×768
HV320WX2-201 BOE 31.5 1366×768
HV320WX2-206 BOE 31.5 1366×768
HV320WX2-500 BOE 31.5 1366×768
HV320WXC-100 BOE 31.5 1366×768
HV320WXC-201 BOE 31.5 1366×768
T315HW05 V1 AUO 31.5 1920×1080
