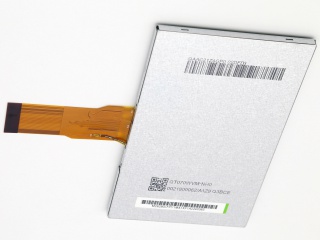

| Nombor Bahagian | QT070WVM-NH0 |
| Jenama | BOE |
| Saiz | 7.0 |
| Permohonan | Home Appliance |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama | BOE |
| saiz pepenjuru | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 134PPI |
| kawasan aktif | 153.84(H)×85.632(V) mm |
| kawasan bezel | - |
| kecerahan | 350 cd/m² (Typ.) |
| arah pandang | - |
| sudut pandangan | 70/70/60/70 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 50% NTSC |
| berat badan | 160g (Typ.) |
| kadar bingkai | 60Hz |
| model | QT070WVM-NH0 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 164.9(H)×100(V) mm |
| rawatan | Antiglare (Haze 25%), Hard coating (3H) |
| nisbah kontras | 500:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED , W/O Driver |
| direka untuk | Home Appliance |
| panel sentuh | Without |
