PT035TN01 V.3

PT035TN01 V.3

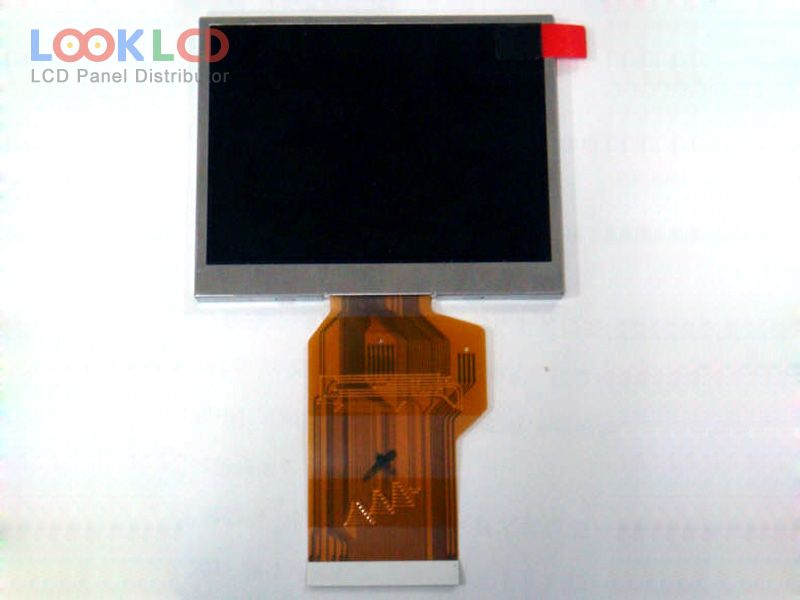

PT035TN01 V.3 thumb
Jenama
Innolux
Saiz
3.5
Permohonan
PND
Resolusi
320×240
Komposisi
LCM
Kecerahan
250
CR
300:1
Warna
16.7M
Lampu latar
WLED
Antara muka
Parallel/Serial
In Stock
1816
Spesifikasi

Nombor Bahagian PT035TN01 V.3
JenamaInnolux
Saiz3.5
PermohonanPND
Resolusi320×240
KomposisiLCM
Kecerahan250
CR300:1
Warna16.7M
Lampu latarWLED
Antara mukaParallel/Serial
jenama panelINNOLUX
model panelPT035TN01 V.3
jenis panel a-Si TFT-LCD , LCM
saiz panel3.5 inch
resolusi320(RGB)×240 , QVGA
mod paparanTN, Normally White, TMR
kawasan aktif70.08×52.56 mm
garis besar78.2×65×3.8 mm
permukaanHard coating
kecerahan250 cd/m² (Typ.)
nisbah kontras300 : 1 (Typ.)
warna paparan16.7M (8-bit)
masa tindak balas15/20 (Typ.)(Tr/Td)
sudut pandangan65/65/45/65 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu6S1PWLEDWithout Driver
antara muka isyaratDigital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins
voltan masukan3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
permohonanPND
