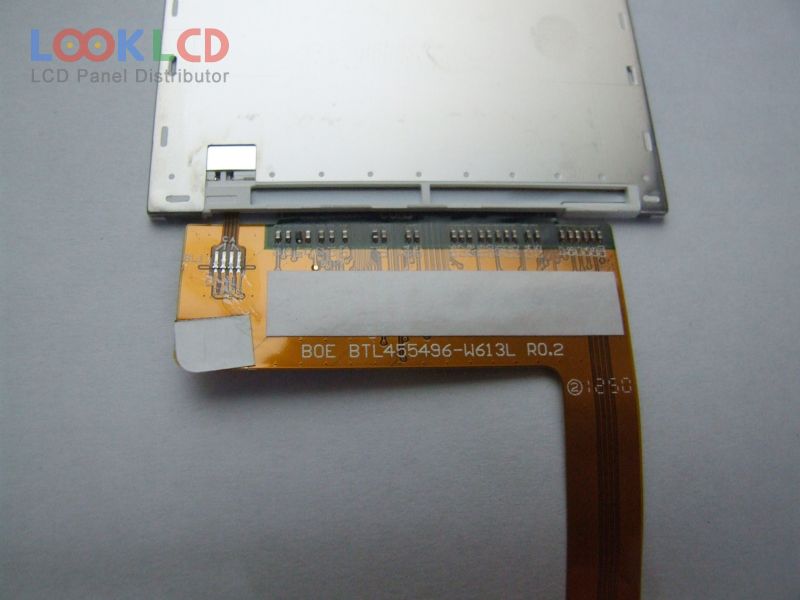

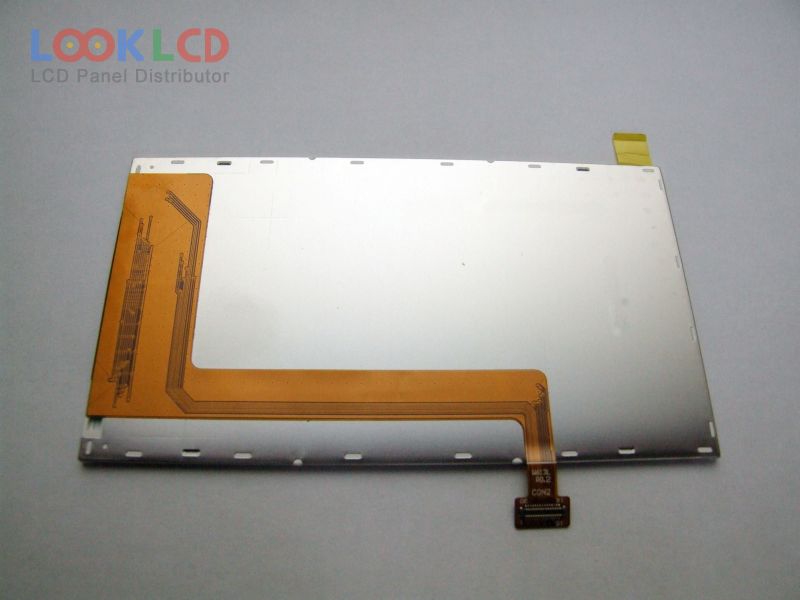

| Nombor Bahagian | BTL455496-W613L |
| Jenama | BOE |
| Saiz | 4.5 |
| Permohonan | MPH |
| Resolusi | 540×960 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 520:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | BTL455496-W613L |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.5 inch |
| resolusi | 540(RGB)×960 , qHD |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 55.485×98.64 mm |
| garis besar | 60.71×109.1×1.8 mm |
| permukaan | Clear |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 520:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 5S2PWLEDWithout Driver |
| antara muka isyarat | MIPI (3 data lanes), 30 pins |
| voltan masukan | 1.8/2.8V (Typ.)(IOVCC/VCI) |
| rohs: | |
| permohonan | MPH |
