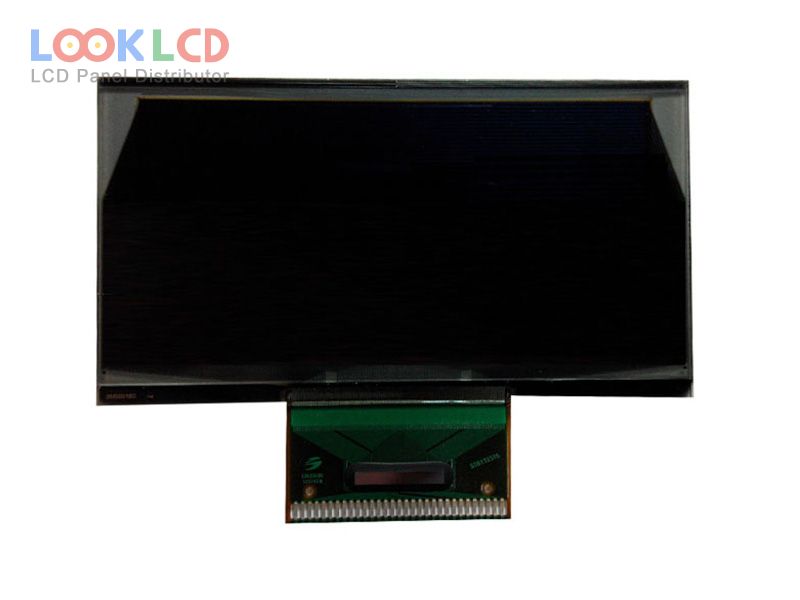

OEL9M5003-W-E

OEL9M5003-W-E
OEL9M5003-W-E thumb
Jenama
Other
Saiz
2.7
Permohonan
Resolusi
128×64
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(White)
Lampu latar
self
Antara muka
CPU/SPI
In Stock
9112
Spesifikasi

Nombor Bahagian OEL9M5003-W-E
JenamaOther
Saiz2.7
Permohonan
Resolusi128×64
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(White)
Lampu latarself
Antara mukaCPU/SPI
jenama panelTRULY
model panelOEL9M5003-W-E
jenis panel PM-OLED , OLED
saiz panel2.7 inch
resolusi128×64
kawasan aktif61.41×30.69 mm
garis besar73×40.24×2.15 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(White) (1-bit)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduTAB Built-in SSD1305T7R1
antara muka isyarat8-bit 6800/8080 parallel, SPI, 30 pins
voltan masukan3.0/13.0V (Typ.)(VDD/VCC)
