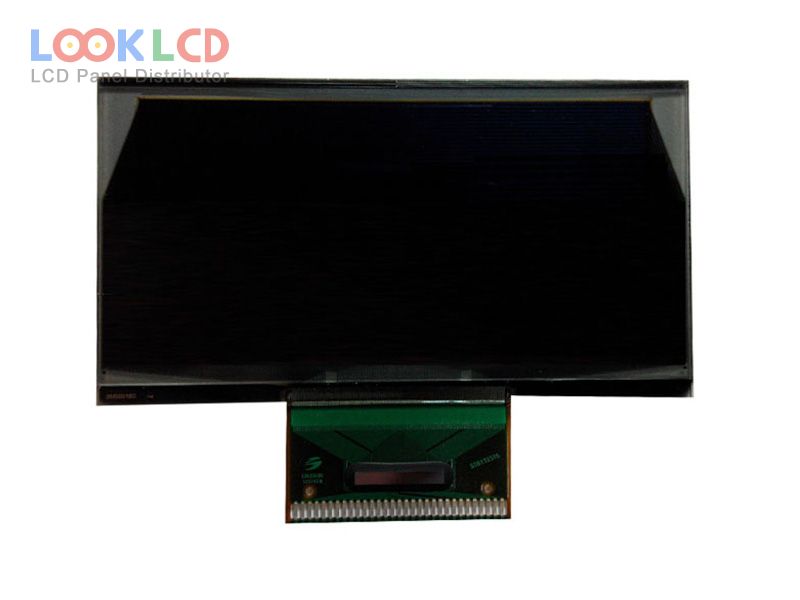

OEL9M5003-Y-E

OEL9M5003-Y-E
OEL9M5003-Y-E thumb
Jenama
Other
Saiz
2.7
Permohonan
Resolusi
128×64
Komposisi
OLED
Kecerahan
80
CR
10000:1
Warna
Mono(Yellow)
Lampu latar
self
Antara muka
CPU/SPI
In Stock
6865
Spesifikasi

Nombor Bahagian OEL9M5003-Y-E
JenamaOther
Saiz2.7
Permohonan
Resolusi128×64
KomposisiOLED
Kecerahan80
CR10000:1
WarnaMono(Yellow)
Lampu latarself
Antara mukaCPU/SPI
jenama panelTRULY
model panelOEL9M5003-Y-E
jenis panel PM-OLED , OLED
saiz panel2.7 inch
resolusi128×64
kawasan aktif61.41×30.69 mm
garis besar73×40.24×2.15 mm
permukaan
kecerahan80 cd/m² (Typ.)
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Yellow) (1-bit)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduTAB Built-in SSD1305T7R1
antara muka isyarat8-bit 6800/8080 parallel, SPI, 30 pins
voltan masukan3.0/13.0V (Typ.)(VDD/VCC)
Model Keluarga
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
