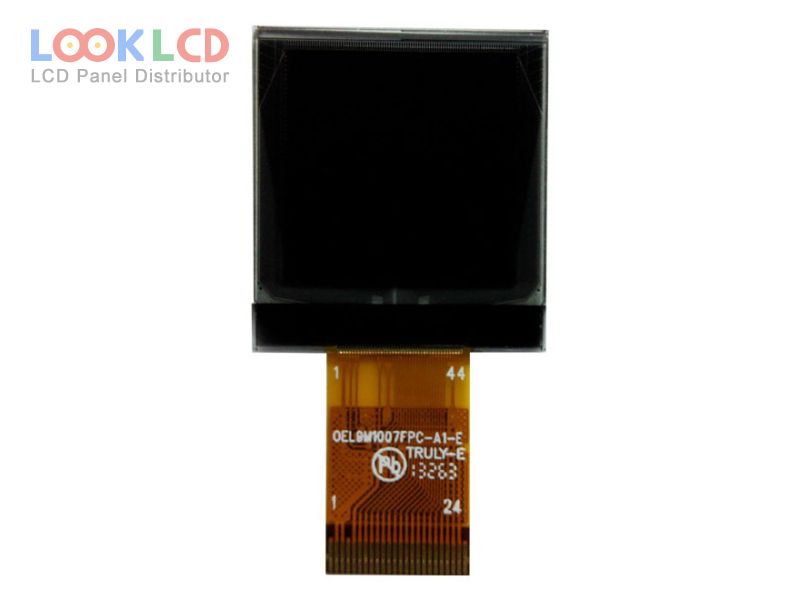

OEL9M1007-G-E

OEL9M1007-G-E
OEL9M1007-G-E thumb
Jenama
Other
Saiz
1.1
Permohonan
SW
Resolusi
96×96
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(Green)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
4779
Spesifikasi

Nombor Bahagian OEL9M1007-G-E
JenamaOther
Saiz1.1
PermohonanSW
Resolusi96×96
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(Green)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTRULY
model panelOEL9M1007-G-E
jenis panel PM-OLED , OLED
saiz panel1.1 inch
resolusi96×96
kawasan aktif19.655×19.655 mm
garis besar25.49×29.1×1.55 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Green) (1-bit)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduCOG Built-in SH1107G
antara muka isyarat8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins
permohonanSW
Model Keluarga
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-G-E Other 1.1 96×96
OEL9M1007-W-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-G-E Other 0.95 96×64
OEL9M1010-R-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
