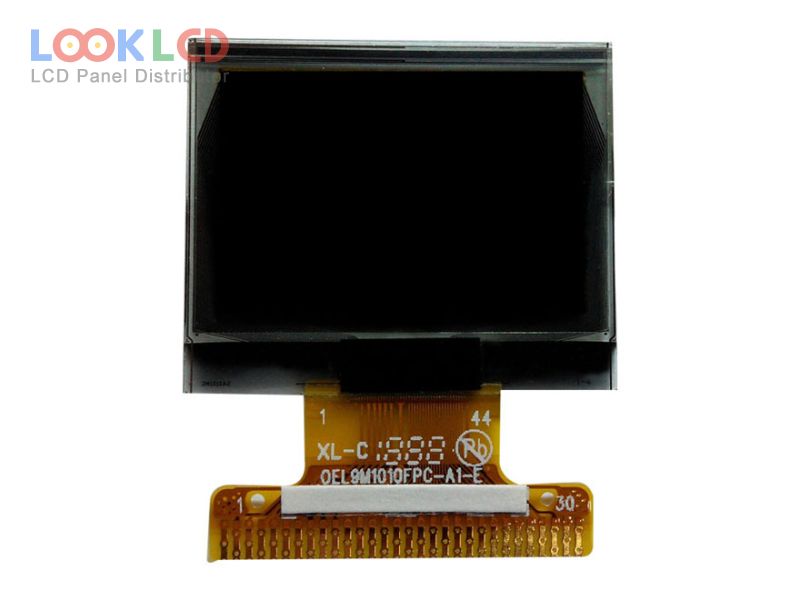

OEL9M1010-G-E

OEL9M1010-G-E
OEL9M1010-G-E thumb
Jenama
Other
Saiz
0.95
Permohonan
SW
Resolusi
96×64
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(Green)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
12816
Spesifikasi

Nombor Bahagian OEL9M1010-G-E
JenamaOther
Saiz0.95
PermohonanSW
Resolusi96×64
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(Green)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTRULY
model panelOEL9M1010-G-E
jenis panel PM-OLED , OLED
saiz panel0.95 inch
resolusi96×64
kawasan aktif19.95×13.42 mm
garis besar24.9×20.53×1.55 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Green) (1-bit)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduCOG Built-in SH1106G
antara muka isyarat8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
voltan masukan3.3/3.3V (Typ.)(VDD1/VDD2)
permohonanSW
