OEL9M1004-L4-E

OEL9M1004-L4-E

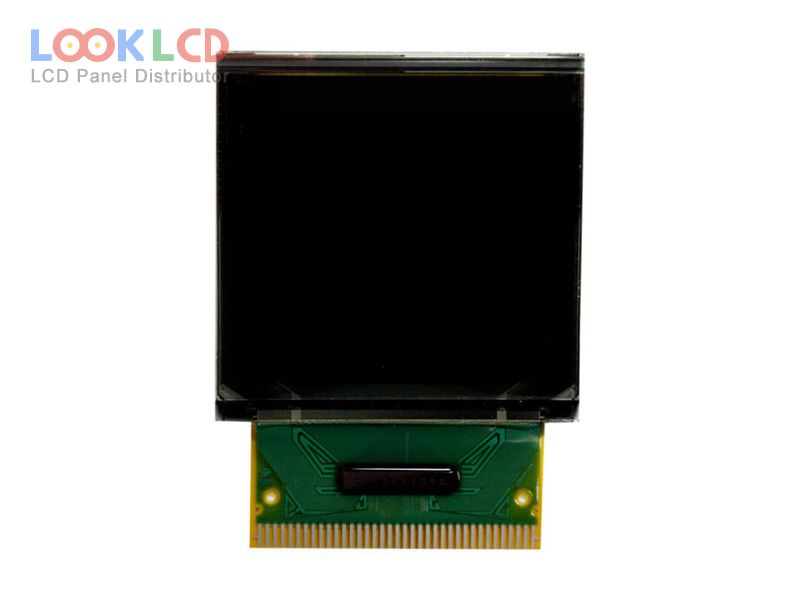

OEL9M1004-L4-E thumb
Jenama
Other
Saiz
1.5
Permohonan
SW
Resolusi
128×128
Komposisi
OLED
Kecerahan
80
CR
5000:1
Warna
262K
Lampu latar
self
Antara muka
CPU/SPI
In Stock
2176
Spesifikasi

Nombor Bahagian OEL9M1004-L4-E
JenamaOther
Saiz1.5
PermohonanSW
Resolusi128×128
KomposisiOLED
Kecerahan80
CR5000:1
Warna262K
Lampu latarself
Antara mukaCPU/SPI
jenama panelTRULY
model panelOEL9M1004-L4-E
jenis panel PM-OLED , OLED
saiz panel1.5 inch
resolusi128(RGB)×128
kawasan aktif27.23×27.23 mm
garis besar35.5×34.6×1.55 mm
permukaan
kecerahan80 cd/m² (Typ.)
nisbah kontras5000 : 1 (Min.)
warna paparan262K (6-bit), CIE193160%
sudut pandangan85/85/85/85 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduCOF Built-in SSD1355U8R1
antara muka isyarat8/16/18-bit 6800/8080 parallel, 3/4-wire SPI, 37 pins
permohonanSW
